A Guide to Structural Pipe: ASTM A500vsEN10219

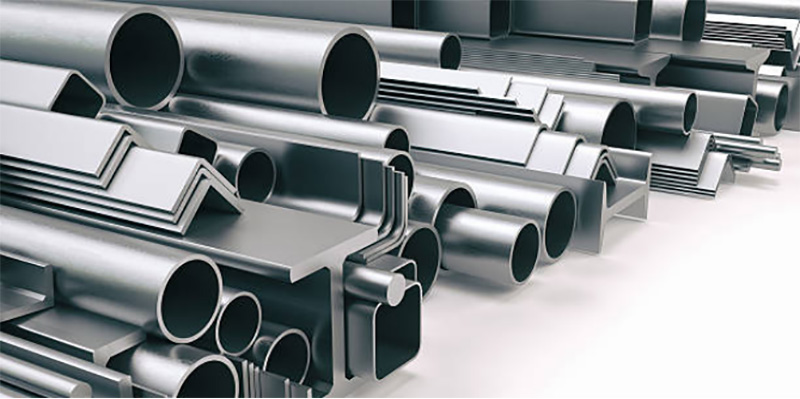

Ⅰ. Structural pipes: the core support of engineering

Structural pipe is steel pipe used to withstand axial pressure, tension or bending moment. Their function is to provide structural support for buildings and machinery. According to the material, it is divided into:

· Carbon structural pipe (such as Q235B): economical and practical, suitable for ordinary building support.

· High Strength Structural Pipe: 65yield strength ≥355MPa, used in load-concentrated scenes such as bridges and heavy machinery.

Core characteristics:

· Sectional advantages: Round, square, rectangular and other cross-sectional designs. Under the same cross-sectional area, the torsional rigidity of round tubes is 20% higher than that of H-shaped steel, and the bending resistance of square tubes is better.

Modular design: flexible connection is achieved through structural pipe fittings (such as elbows, tees, flanges), shortening the on-site processing time by 30%.

Ⅱ. Diverse applications: full coverage from construction to industry

Structural pipe is a high-end product used for load-bearing structures in construction steel pipe.

1. Construction engineering: creating a stable skeleton

· Frame of high-rise buildings: using high-strength square tubes (such as 200×200×8mm) as columns, connected with flange pipe fittings, the bearing capacity is 15% higher than that of traditional I-beams. For example, a 30-story office building uses rectangular structural tubes, reducing the amount of steel by 20%.

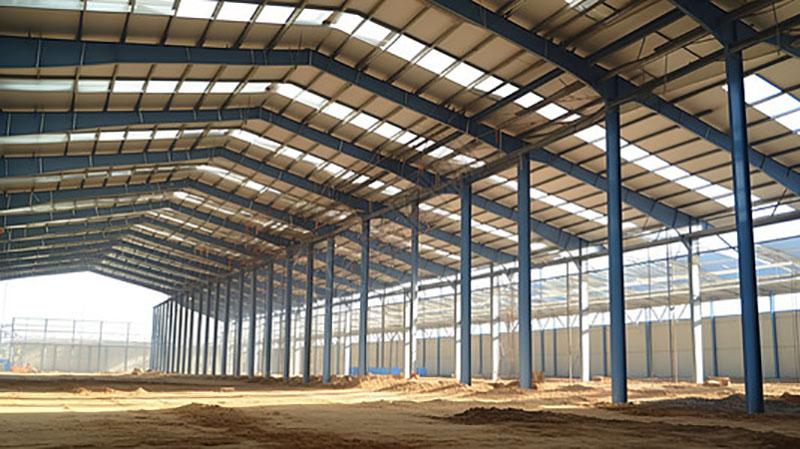

Steel structure workshop: round tubes (φ159×6mm) are used as roof purlins, and a truss system is formed by welding pipe fittings. The wind resistance level can reach level 12, which is suitable for coastal areas.

2. Bridge and traffic engineering

· Bridge support system: large diameter high-strength round tubes (φ610×12mm) are used as pier support columns, and cast steel node pipe fittings are used to withstand 10,000-ton loads. For example, a cross-river bridge uses API 5L X70 structural pipes, and the seismic fortification intensity reaches 8 degrees.

· Highway guardrails: Corrugated steel guardrail columns use φ140×4.5mm round tubes, which are fixed by pre-buried pipe fittings, and the collision absorption energy is increased by 25%, ensuring driving safety.

3. Industrial equipment and machinery

· Heavy machinery frame: high-strength rectangular tubes (300×150×10mm) are used for the main body of port cranes, and are matched with universal joint pipe fittings. The fatigue resistance is increased by 40%, which is suitable for high-frequency lifting operations.

· Equipment support structure: Structural pipe support (STRUCTURAL PIPE SUPPORT) The system uses customized steel pipe combinations, and the size is optimized through finite element analysis to ensure stability under vibration conditions.

Ⅲ. High-strength structural tube: technological upgrade that breaks through load limits

1. Material and process innovation

· High-strength steel: Q460C steel has a yield strength of 460MPa, which is 50% higher than ordinary steel and is suitable for large-span structures (such as stadium domes).

· Seamless forming process: Seamless structural tubes are produced through hot extrusion or cold drawing processes to eliminate weld defects and improve impact resistance by 30%, which is suitable for earthquake-prone areas.

2. Size and section optimization

Structural Steel Tube Sizes Wide coverage:

· Round tube: outer diameter φ21.3mm-φ1220mm, wall thickness 2mm-50mm.

· Square tube/rectangular tube: side length 20×20mm-600×600mm, wall thickness 3mm-25mm.

3.Coating technology strengthening

Anti-corrosion coating solutions of structural tubing:

Ⅳ. Selection Guide: Four-step Matching Optimal Solution

1.Clear load type:

· Axial pressure: Prioritize round tubes (strong anti-instability ability).

· Bending load: Select square tubes/rectangular tubes (larger section modulus).

2.Matching size specifications:

Calculate the optimal structural steel tubing size based on span and spacing through the “Cold-bent Hollow Steel for Structures” (GB/T 6728) or ASTM A500 standard.

Ⅴ. Conclusion: Structural pipes – a reliable cornerstone of engineering safety

From the supporting skeleton of ordinary buildings to the load core of bridge engineering, the coordinated application of high-strength structural pipes and structural pipe fittings is redefining the safety and economy of engineering structures through material innovation, size optimization and coating upgrades. Whether it is a complex project that requires customized structural steel pipe sizes or an industrial scenario with special requirements for structural pipe support systems, professional solutions can ensure that every inch of pipe can achieve the maximum value.

As a supplier deeply engaged in the field of structural pipes, we provide a full range of high-strength structural pipes from Q235B to Q460C, covering full-size specifications and customized coating services. The products comply with international standards such as GB, ASTM, and EN. Contact us now to get the “Structural Pipe Selection Manual” so that every engineering structure has a solid “steel skeleton”!
