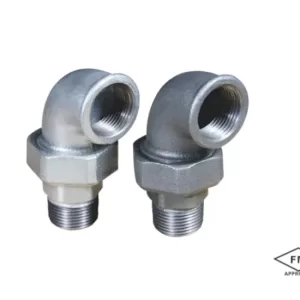

Malleable cast iron male and female union elbow (Flat / taper seat)
·Standard: ISO 49 / EN 10242
UL/FM
·Material: BS EN 1562, EN-GJMB-350-10
·Thread: BSPT
·W. pressure: 20 ~ 25 bar, ≤ PN25
·Surface: Black iron / hot dip galvanized
·Size Range: 1/2″ —2″
description
Malleable cast iron male and female union elbow (Flat /taper seat), flat/taper seat for tight leakage prevention, quick socket installation, efficient steering connection.
Specification
Available size

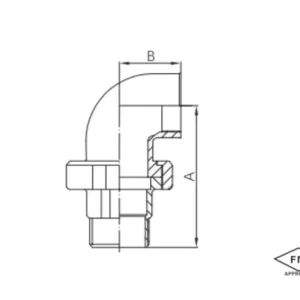

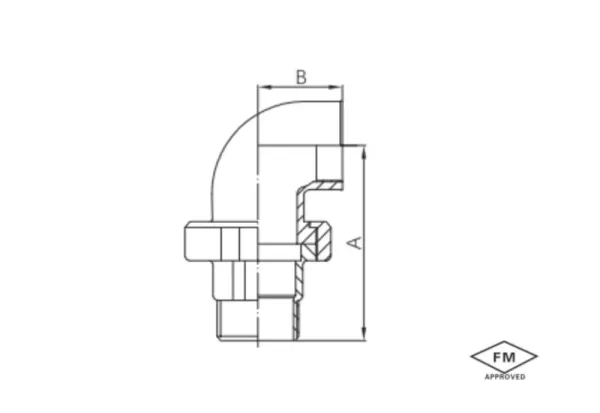

SIZE | A | B | Type | ||
INCH | DN | MM | MM | MM |
|
1/2″ | 15 | 21.3 | 76 | 28 | Flat seat / taper seat |
3/4″ | 20 | 26.9 | 82 | 33 | Flat seat / taper seat |
1″ | 25 | 33.7 | 94 | 38 | Flat seat / taper seat |
1-1/4″ | 32 | 42.4 | 107 | 45 | Flat seat / taper seat |
1-1/2″ | 40 | 48.3 | 115 | 50 | Flat seat / taper seat |
2″ | 50 | 60.3 | 128 | 58 | Flat seat / taper seat |
Note:
1.For flat seat, it must be fitted together with gasket for sealing, and TPMC could supply rubber gasket separately.
2.For taper (conical) seat, it is self-sealing without gasket.
3.For taper seat material of head and tail, it is malleable iron, and also available with both brass rings as customized.
4.NSF 61 certificate is available for M4103 ~ M4108.
application
- Compact Space Piping Systems: Threaded Coupling Elbows for Pipe Directional Changes and Sealed Connections Inside Equipment Cabinets .
- Fire Protection Network Renovation Projects: UL-Certified Structures for High-Pressure Sealing and Rapid Directional Adjustment in Sprinkler Systems .
- Ship Engine Room Piping: Directional Connection Solutions for Fuel/Cooling Water Systems in Space-Constrained Areas.
- Industrial Equipment Integration: Modular connections for removable turning pipelines at compressor inlets and outlets.
- Energy Transmission Systems: Directional adaptation and efficient maintenance of oil and gas pipeline inspection ports.
- Agricultural Irrigation Hubs: Rapid repair solutions for adjustable turning pipelines in pump station filtration systems.
- Chemical Process Equipment: Sealed turning connections for frequently disassembled pipelines around reactors.
- Mining Equipment Pipelines: Anti-loosening turning connection solutions for high-vibration conditions.
advantages
- Innovative connection method: Integrated internal and external thread design enables quick installation with a single-end live joint.
- Dual-mode sealing structure: Flat seal (requires gasket)/conical seal (self-tightening, gasket-free).
- High-pressure sealing assurance: BSPT thread structure meets stringent sealing requirements for harsh operating conditions.
- Optimized directional adjustment: 90° turning angle improves spatial layout efficiency.
- Quick Maintenance Features: Quick-connect design enables in-place disassembly of the pipeline system.
- Long-Term Corrosion Protection System: Hot-dip galvanized coating validated for industrial corrosion environments.
- Material Customization Options: Standard cast iron sealing surface / optional brass sealing ring.
- Safety Certification Assurance: Specific models comply with drinking water contact standards .
packing
- Plastic Screw Caps: Threaded composite protection for internal & external threaded ends.
- Protective Covering of Seal Surfaces: LDPE or HDPE Film over flat/conical sealing surfaces.
- Component Packaging System : Flanges and seal gaskets packaged separately,you could prevent any scrath on flange.
- Rust Prevention Solution: Wrapping with VCI (vacuum sealed Vapor Phase corrosion inhibitors) film.
- Solution For Protection Of Transportation: Fumigated wooden box with steel-band reinforced
- Traceability Management System: Box QR code Certification Information and Specification Parameters.
- Design of Curved Surface Cushioning: moulded around elbow transition points with injected foam material .
