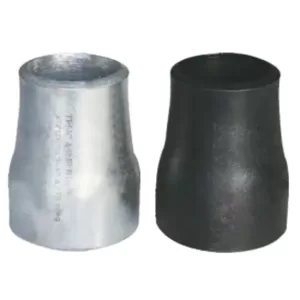

Butt weld concentric reducer
·Standard: ISO
ASME B16.9
·Material: Carbon steel ASTM A234, WPB
SS ASTM A403, WP304 / WP316L
·W. pressure: Equal to same seamless pipe
·Surface: Black painting / hot dip galvanized Pickling white/No.2B matte finish
Pickling white,etc.
·Size range: 3/4″x1/2″—24″x 10″
description
butt weld concentric reducer is a conical pipe fitting used to connect two pipes of different sizes on a coaxial line, significantly reducing fluid resistance and providing high sealing and strength.
Specification
Available size

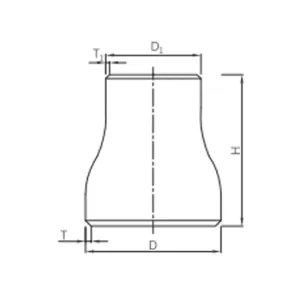

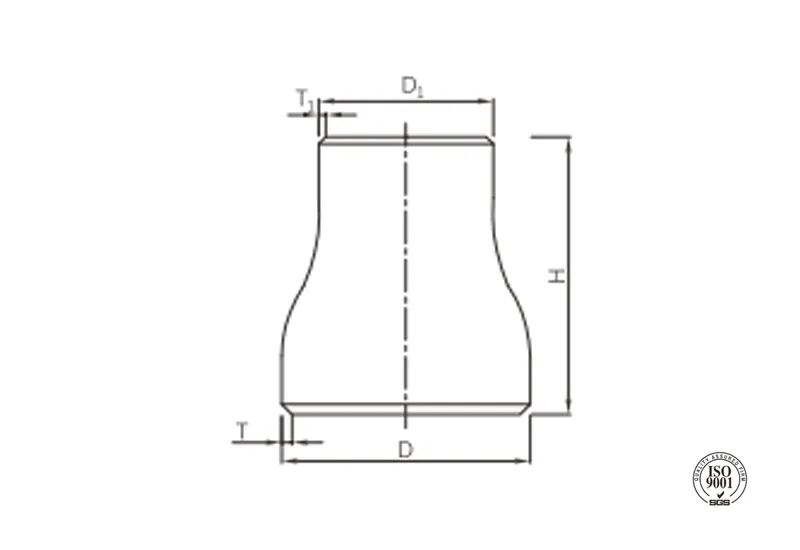

| Size(DXD1) | Thickness TXT1 (mm) | H(mm) | ||||
| NPS | DN | OD(mm) | Sch10 | Sch40 | Sch80 | |
| 3/4″x1/2″ | 20×15 | 26.7×21.3 | 2.11×2.11 | 2.87×2.77 | 3.91×3.73 | 38 |
| 1″x3/4″ | 25×20 | 33.4×26.7 | 2.77×2.11 | 3.38×2.87 | 4.55×3.91 | 51 |
| 1″x1/2″ | 25×15 | 33.4×21.3 | 2.77×2.11 | 3.38×2.77 | 4.55×3.73 | 51 |
| 1-1/4″x1″ | 32×25 | 42.2×33.4 | 2.77×2.77 | 3.56×3.38 | 4.85×4.55 | 51 |
| 1-1/4″x 3/4″ | 32×20 | 42.2×26.7 | 2.77×2.11 | 3.56×2.87 | 4.85×3.91 | 51 |
| 1-1/4″x1/2″ | 32×15 | 42.2×21.3 | 2.77×2.11 | 3.56×2.77 | 4.85×3.73 | 51 |
| 1-1/2″x1-1/4″ | 40×32 | 48.3×42.2 | 2.77×2.77 | 3.68×3.56 | 5.08×4.85 | 64 |
| 1-1/2″x1″ | 40×25 | 48.3×33.4 | 2.77×2.77 | 3.68×3.38 | 5.08×4.55 | 64 |
| 1-1/2″x3/4″ | 40×20 | 48.3×26.7 | 2.77×2.11 | 3.68×2.87 | 5.08×3.91 | 64 |
| 1-1/2″x1/2″ | 40×15 | 48.3×21.3 | 2.77x 2.11 | 3.68×2.77 | 5.08×3.73 | 64 |
| 2″x1-1/2″ | 50×40 | 60.3×48.3 | 2.77×2.77 | 3.91×3.68 | 5.54×5.08 | 76 |
| 2″x 1-1/4″ | 50×32 | 60.3×42.2 | 2.77×2.77 | 3.91×3.56 | 5.54×4.85 | 76 |
| 2″x1″ | 50×25 | 60.3×33.4 | 2.77×2.77 | 3.91x 3.38 | 5.54×4.55 | 76 |
| 2″x3/4″ | 50×20 | 60.3×26.7 | 2.77×2.11 | 3.91×2.87 | 5.54×3.91 | 76 |
| 2″x1/2″ | 50×15 | 60.3×21.3 | 2.77×2.11 | 3.91×2.77 | 5.54×3.73 | 76 |
| 2-1/2″x2″ | 65×50 | 73.0×60.3 | 3.05×2.77 | 5.16×3.91 | 7.01×5.54 | 89 |
| 2-1/2″x1-1/2″ | 65×40 | 73.0×48.3 | 3.05×2.77 | 5.16×3.68 | 7.01×5.08 | 89 |
| 2-1/2″x1-1/4″ | 65×32 | 73.0×42.2 | 3.05×2.77 | 5.16×3.56 | 7.01×4.85 | 89 |
| 2-1/2″x1″ | 65×25 | 73.0×33.4 | 3.05×2.77 | 5.16×3.38 | 7.01×4.55 | 89 |
| 2-1/2″x3/4″ | 65×20 | 73.0×26.7 | 3.05×2.11 | 5.16×2.87 | 7.01×3.91 | 89 |
| 3″x2-1/2″ | 80×65 | 88.9×73.0 | 3.05×3.05 | 5.49×5.16 | 7.62×7.01 | 89 |
| 3″x2″ | 80×50 | 88.9×60.3 | 3.05×2.77 | 5.49×3.91 | 7.62×5.54 | 89 |
| 3″x1-1/2″ | 80×40 | 88.9×48.3 | 3.05×2.77 | 5.49×3.68 | 7.62×5.08 | 89 |
| 3″x1-1/4″ | 80×32 | 88.9×42.2 | 3.05×2.77 | 5.49×3.56 | 7.62×4.85 | 89 |
| 3″x1″ | 80×25 | 88.9×33.4 | 3.05×2.77 | 5.49×3.38 | 7.62×4.55 | 89 |
| 4″x3″ | 100×80 | 114.3×88.9 | 3.05×3.05 | 6.02×5.49 | 8.56×7.62 | 102 |
| 4″x2-1/2″ | 100×65 | 114.3×73.0 | 3.05×3.05 | 6.02×5.16 | 8.56×7.01 | 102 |
| 4″x2″ | 100×50 | 114.3×60.3 | 3.05×2.77 | 6.02×3.91 | 8.56×5.54 | 102 |
| 4″x1-1/2″ | 100×40 | 114.3×48.3 | 3.05×2.77 | 6.02×3.68 | 8.56×5.08 | 102 |
| 4″x1-1/4″ | 100×32 | 114.3×42.2 | 3.05×2.77 | 6.02×3.56 | 8.56×4.85 | 102 |
| 4″x1″ | 100×25 | 114.3×33.4 | 3.05×2.77 | 6.02×3.38 | 8.56×4.55 | 102 |
| 5″x4″ | 125×100 | 141.3×114.3 | 3.40×3.05 | 6.55×6.02 | 9.53×8.56 | 127 |
| 5″x3″ | 125×80 | 141.3×88.9 | 3.40×3.05 | 6.55×5.49 | 9.53×7.62 | 127 |
| 5″x2-1/2″ | 125×65 | 141.3×73.0 | 3.40×3.05 | 6.55×5.16 | 9.53×7.01 | 127 |
| 5″x2″ | 125×50 | 141.3×60.3 | 3.40×2.77 | 6.55×3.91 | 9.53×5.54 | 127 |
| 6″x5″ | 150×125 | 168.3×141.3 | 3.40×3.40 | 7.11×6.55 | 10.97×9.53 | 140 |
| 6″x4″ | 150×100 | 168.3×114.3 | 3.40×3.05 | 7.11×6.02 | 10.97×8.56 | 140 |
| 6″x3″ | 150×80 | 168.3×88.9 | 3.40×3.05 | 7.11×5.49 | 10.97×7.62 | 140 |
| 6″x2-1/2″ | 150×65 | 168.3×73.0 | 3.40×3.05 | 7.11×5.16 | 10.97×7.01 | 140 |
| 6″x2″ | 150×50 | 168.3×60.3 | 3.40×2.77 | 7.11×3.91 | 10.97×5.54 | 140 |
| 8″x6″ | 200×150 | 219.1×168.3 | 3.76×3.40 | 8.18×7.11 | 12.70×10.97 | 152 |
| 8″x5″ | 200×125 | 219.1×141.3 | 3.76×3.40 | 8.18×6.55 | 12.70×9.53 | 152 |
| 8″x4″ | 200×100 | 219.1×114.3 | 3.76×3.05 | 8.18×6.02 | 12.70×8.56 | 152 |
| 8″x3″ | 200×80 | 219.3×88.9 | 3.76×3.05 | 8.18×5.49 | 12.70×7.62 | 152 |
| 10″x8″ | 250×200 | 273.0×219.1 | 4.19×3.76 | 9.27×8.18 | 15.09×12.70 | 178 |
| 10″x6″ | 250×150 | 273.0×168.3 | 4.19×3.40 | 9.27×7.11 | 15.09×10.97 | 178 |
| 10″x5″ | 250×125 | 273.0×141.3 | 4.19×3.40 | 9.27×6.55 | 15.09×9.53 | 178 |
| 10″x4″ | 250×100 | 273.0×114.3 | 4.19×3.05 | 9.27×6.02 | 15.09×8.56 | 178 |
| 12″x 10″ | 300×250 | 323.8×273.0 | 4.57×4.19 | 10.31×9.27 | 17.48×15.09 | 203 |
| 12″x8″ | 300×200 | 323.8×219.1 | 4.57×3.76 | 10.31×8.18 | 17.48×12.70 | 203 |
| 12″x6″ | 300×150 | 323.8×168.3 | 4.57×3.40 | 10.31×7.11 | 17.48×10.97 | 203 |
| 12″x5″ | 300×125 | 323.8×141.3 | 4.57×3.40 | 10.31×6.55 | 17.48×9.53 | 203 |
| 12″x4″ | 300×100 | 323.8×114.3 | 4.57×3.05 | 10.31×6.02 | 17.48×8.56 | 203 |
| 14″x12″ | 350×300 | 355.6×323.8 | 6.35×4.57 | 11.13×10.31 | 19.05×17.48 | 330 |
| 14″x10″ | 350×250 | 355.6×273.0 | 6.35×4.19 | 11.13×9.27 | 19.05×15.09 | 330 |
| 14″x8″ | 350×200 | 355.6×219.1 | 6.35×3.76 | 11.13×8.18 | 19.05×12.70 | 330 |
| 14″x6″ | 350×150 | 355.6×168.3 | 6.35×3.40 | 11.13×7.11 | 19.05×10.97 | 330 |
| 16″x14″ | 400×350 | 406.4×355.6 | 6.35×6.35 | 12.70×11.13 | 21.44×19.05 | 356 |
| 16″x12″ | 400×300 | 406.4×323.8 | 6.35×4.57 | 12.70×10.31 | 21.44×17.48 | 356 |
| 16″x10″ | 400×250 | 406.4×273.0 | 6.35×4.19 | 12.70×9.27 | 21.44×15.09 | 356 |
| 16″x8″ | 400×200 | 406.4×219.1 | 6.35×3.76 | 12.70×8.18 | 21.44×12.70 | 356 |
| 16″x6″ | 400×150 | 406.4×168.3 | 6.35×3.40 | 12.70×7.11 | 21.44×10.97 | 356 |
| 18″x16″ | 450×400 | 457×406.4 | 6.35×6.35 | 14.27×12.70 | 23.83×21.44 | 381 |
| 18″x14″ | 450×350 | 457×355.6 | 6.35×6.35 | 14.27×11.13 | 23.83×19.05 | 381 |
| 18″x12″ | 450×300 | 457×323.8 | 6.35×4.57 | 14.27×10.31 | 23.83×17.48 | 381 |
| 18″x10″ | 450×250 | 457×273.0 | 6.35×4.19 | 14.27×9.27 | 23.83×15.09 | 381 |
| 18″x8″ | 450×200 | 457×219.1 | 6.35×3.76 | 14.27×8.18 | 23.83×12.70 | 381 |
| 20″x18″ | 500×450 | 508×457 | 6.35×6.35 | 15.09×14.27 | 26.19×23.83 | 508 |
| 20″x16″ | 500×400 | 508×406.4 | 6.35×6.35 | 15.09×12.70 | 26.19×21.44 | 508 |
| 20″x14″ | 500×350 | 508×355.6 | 6.35×6.35 | 15.09×11.13 | 26.19×19.05 | 508 |
| 20″x12″ | 500×300 | 508×323.8 | 6.35×4.57 | 15.09×10.31 | 26.19×17.48 | 508 |
| 20″x10″ | 500×250 | 508×273.0 | 6.35×4.19 | 15.09×9.27 | 26.19×15.09 | 508 |
| 20″x8″ | 500×200 | 508×219.1 | 6.35×3.76 | 15.09×8.18 | 26.19×12.70 | 508 |
| 24″x20″ | 600×500 | 610×508 | 6.35×6.35 | 17.48×15.09 | 30.96×26.19 | 508 |
| 24″x18″ | 600×450 | 610×457 | 6.35×6.35 | 17.48×14.27 | 30.96×23.83 | 508 |
| 24″x16″ | 600×400 | 610×406.4 | 6.35×6.35 | 17.48×12.70 | 30.96×21.44 | 508 |
| 24″x14″ | 600×350 | 610×355.6 | 6.35×6.35 | 17.48×11.13 | 30.96×19.05 | 508 |
| 24″x12″ | 600×300 | 610×323.8 | 6.35×4.57 | 17.48×10.31 | 30.96×17.48 | 508 |
| 24″x 10″ | 600×250 | 610×273.0 | 6.35×4.19 | 17.48×9.27 | 30.96×15.09 | 508 |
Note: The thickness is available with Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.
application
- Pipe transition connection: Used for coaxial connection of pipes with different diameters (such as transition from main pipe to smaller branch pipe), ensuring smooth fluid transition.
- Fluid resistance optimization: The conical design significantly reduces turbulence and pressure loss, suitable for critical nodes such as pump inlets and outlets, and before and after flow meters.
- Industrial fields: Oil transportation, chemical processes, water treatment systems, and other scenarios requiring stable flow and high sealing performance.
advantages
- Optimization of fluid dynamics: the central axisymmetric conical structure reduces the generation of vortex and keeps the fluid flow smooth. Generate lower pressure drop than asymmetric reducers, saving system energy.
- Structural reliability:pressure bearing capacity equivalent to seamless steel pipe, impact resistance is high; Zero leakage welding and sealing around joints means no maintenance costs transformations into permanent zero-leakage closing.
- Fitting performance characteristics: Material adaptability: low carbon steel (ASTM A234): Economical, there is an application range in the industry pipeline.
- Stainless steel (304–316L): which has good corrosion resistance, allowing hygienic requirements established for food, drug and other industries.
- Ease of Installation: Common welding joint design in the industry acc.to ISO/ASME B16. 9) .
packing
- Surface Protection Customization:
- Standard Protection: Black paint coating for rust prevention.
- Highly Corrosive Environments: Hot-dip galvanizing or acid washing and passivation treatment (available in silver-white/matte finish).
- Tiered Packaging Strategy:
- Small Diameter (≤4″): Bundled in multiple pieces with foam dividers to prevent collisions.
- Large Diameter (＞4″): Single-piece wooden box packaging with anti-vibration brackets inside for secure fixation.
- Smart Identification System:
- Arrows clearly indicate flow direction (large end → small end).
- Outer box printed with specifications (e.g., DN200 → DN100), material codes, and moisture-proof labels.
