In the construction of offshore platforms and wharf engineering, the foundation ensures the safety and durability of the structure. Among foundation members, steel pipe piles are irreplaceable-they bear the loads of superstructure, resist seawater erosion and bear harsh marine conditions. If there is no high quality steel pipe pile, projects will face serious foundation instability risks. When selecting steel pipe piles for this key projects, the astm a252 is an authoritative guide that can not be ignored. In this paper, the key technical indexes of astm a252 are discussed to help engineers choose steel pipe piles for ocean and wharf engineering.

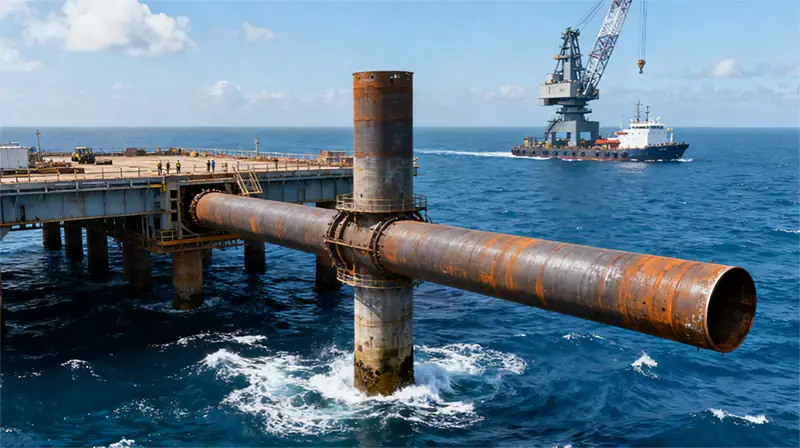

astm a252 steel pipe pile offshore platform.



An overview of the ASTM A252 standard

The astm a252 standard issued by ASTM International is specially designed for steel pipe piles in buildings-especially for offshore and wharf projects. Different from the general steel pipe standards, astm a252 focuses on the unique performance requirements of steel pipe piles in basic engineering, covering material composition, manufacturing, mechanical properties and testing.

Regarding material composition, the ASTM A252 standard is not restrictive. Its only specified chemical requirement is that the phosphorus content shall not exceed 0.050%. This control is important as excessive phosphorus can lead to embrittlement at low temperatures. In manufacturing, it specifies processes (seamless/welded) and requires defect-free pipe bodies (no cracks/inclusions). Conforming to astm a252 standard can ensure the consistency and reliability of the quality of steel pipe piles. Thus, it is the preferred standard for engineers selecting steel pipe piles for offshore and dock projects.

ASTM A252 Key technical indicators of steel pipe piles

Grade Selection: Differences and Selection Bases between Grade 1, 2, and 3

Under the ASTM A252 standard, steel pipe piles are available in three distinct grades, with their primary differences being in mechanical properties. Selecting the correct grade is crucial for project safety and cost-effectiveness.

· Grade 1: This grade has a minimum yield strength of 30 ksi (207 MPa) and a minimum tensile strength of 50 ksi (345 MPa). It is suitable for applications with lower load requirements.

· Grade 2: This is a commonly used grade with a minimum yield strength of 35 ksi (240 MPa) and a minimum tensile strength of 60 ksi (415 MPa). It offers a balance of strength and ductility for a wide range of foundation projects, including general wharves and support structures.

· Grade 3: This grade provides the highest strength, with a minimum yield strength of 45 ksi (310 MPa) and a minimum tensile strength of 66 ksi (455 MPa). It is specified for projects with heavy loads or those in harsh marine environments, such as large offshore platforms and deep-water container terminals, ensuring maximum foundation stability.

When selecting grades, engineers should consider design load (heavy loads requires Grade 3), marine conditions (harsh environment requires Grade 3) and service life.

Straightness and dimensional Tolerance: why they are important for piling

Straightness and dimensional tolerance directly affect the piling and foundation quality for ASTM A252 steel pipe piles.

Straightness: Steel pipe piles must be driven vertically into the seabed. Poor straightness can lead to high driving resistance, uneven stress, and potential bending or fracture. ASTM A252 requires that the pipe pile shall not deviate from a straight line by more than 1/8 inch in any 10 feet of length (approximately 3.2 mm per 3 meters), ensuring a smooth piling process.

Dimensional tolerance (outer diameter and wall thickness) is very important for on-site splicing. Deviations can lead to splicing gaps, which may reduce bearing capacity and allow seawater to corrode the pile, shortening its service life. ASTM A252 stipulates that the outside diameter tolerance is ±1% of the specified diameter. The wall thickness tolerance is -12.5% of the nominal wall, meaning the thickness cannot be less than 87.5% of the specified value. These controls ensure interchangeability and splicing quality.

Weldability: Requirements for On-Site Splicing

On-site splicing is essential for steel pipe piles (due to transportation/construction restrictions), so weldability is critical for astm a252 steel pipe piles. astm a252 requires steel pipe piles to be weldable via common methods (manual arc, gas metal arc, submerged arc welding) without complex pre/post-welding heat treatment—avoiding increasing offshore construction difficulty/cost.

Good weldability stems from careful control of steel chemistry. For example, while not limited by ASTM A252, high levels of carbon can increase hardness (reducing solderability and risking cold cracking), and sulfur can form compounds with low melting point, which leads to thermal cracks.

ASTM A252 also requires the welded joints to match the mechanical properties of the base metal (tensile/yield strength, elongation ≥ 90% of base metal) to prevent weak links. Manufacturers verifies the weldability through transverse tensile, bending and impact tests, thus ensuring the applicability of splicing.

Conclusion

The astm a252 standard is very important for the selection of steel pipe piles in offshore/wharf engineering. Its grade, straightness, dimensional tolerance, and weldability rules ensure ASTM A252 steel pipe pile’s excellent performance and reliability, meeting marine demands. Adherence to ASTM A252 standards is key to the success of the project: selecting grades according to needs, checking straightness/tolerance to ensure smooth progress, giving priority to weldability to ensure splicing quality.

We are professional manufacturer of astm a252 steel pipe piles. Our products conform to ASTM A252 standards and have a complete quality control system (from raw materials to testing). Our ASTM A252 steel pipe pile has excellent mechanical properties, straightness, tolerance, and weldability—suiting large offshore platforms, deep-water docks, and coastal revetments. If you need high quality steel pipe piles for offshore/wharf engineering, please choose our astm a252 steel pipe piles. We offer high-quality products and professional services to support your project.
