Heavy-Duty Piling Solutions: Why ASTM A252 is the Industry Standard for Steel Pipe Piles

Introduction

Global infrastructure projects-from port and long-span bridges to urban foundations-rely on reliable deep foundations to transmit huge loads. At the heart of these systems lies a pipe pile foundation, a proven solution combining strength, durability, and cost-efficiency. Steel pipe piling is preferred for withstanding extreme pressure, lateral forces, and harsh conditions.

As a large diameter pipe supplier, Allland Steel Pipe provides high-quality driven steel piles for marine, transportation and industrial projects. Its stable performance comes from meeting the ASTM A252 standard, which is the global standard for steel pipe piles. This paper discusses the reasons why engineers give priority to ASTM A252, including its specifications, cost advantages, design practices, anticorrosion and applications.

Interpretation of ASTM A252: Structural Core of pipe Pile

ASTM A252 (ASTM A252/A252M-26) is the authoritative carbon steel pipe specification for cylindrical pipe piles, which is designed as permanent bearing members or concrete pile casing. Developed by ASTM International Standards Organization, it manages material properties and manufacturing to ensure consistency. Unlike pressure-focused standards like API 5L, ASTM A252 prioritizes structural strength for pipe pile foundations.

Three Grades of ASTM A252

One of the main characteristics of ASTM A252 is its three strength grades, each of which is customized according to specific load requirements and soil conditions. The main difference lies in the yield strength of steel pipes, which is the key index to bear driving stresses and long-term structural loads.

Why does ASTM A252 Dominate Modern Piling?

ASTM A252 Grade 3 is the industry standard for demanding projects. Its yield strength of 45,000 pounds per square inch makes the pile thinner and more cost-effective, without sacrificing load capacity, and it performs well in deep-water high-load environments. Allland Steel Pipe prioritizes this grade for 90% of heavy-duty piling work.

SY/T 5037 & SSAW Steel Pipe: Economic Advantage of Pile Driving

Although ASTM A252 sets quality standards, the economy of the project depends on the production. For large diameter steel pipe piles, SY/T 5037 SSAW steel pipe saves 10–20% of the cost compared with LSAW steel pipe. Allland Steel Pipe, a leading spiral-welded steel pipe manufacturer, uses SSAW to deliver high-quality, large-diameter sizes affordable price.

What is SSAW Pipe (Spiral Welded Pipe)?

SSAW steel pipe is made by forming steel coil and welding it into a spiral shape, thus forming a uniform pipe with strong structural integrity. SY/T 5037 conforms to ASTM A252 standard, ensuring global compatibility. Main advantages:

• Cost Efficiency: Coil-based continuous production reduces material waste and labor costs, making it ideal for large-volume orders.
• Diameter Flexibility: Produces large diameter steel pipe sizes (up to 2,032 mm) that are cost-prohibitive with LSAW technology.
• Structural Reliability: Spiral weld evenly distributes stress, making it suitable for offshore pipeline applications (friction piles and end-bearing piles).

SSAW and LSAW: Cost and Performance Comparison

For steel pipe pile projects, the choice between SSAW and LSAW usually comes down to cost, diameter and application. The main differences are summarized in the table below.

Allland Steel Pipe: Your Trusted SSAW Steel Pipe Factory

As the leading steel pipe factory in SSAW, Allland Steel Pipe combines SY/T 5037 and ASTM A252 to provide spiral pipe for global projects. Our factory produces SSAW pipes (NPS 12–80, 6–45 mm wall), which are very suitable for piling in oceans, bridges and deep foundation.

How to Choose the Right Wall Thickness and Splicing Procedure

Choosing the appropriate pipe wall thickness and splicing is very important for the performance of the driven steel piles. Even high-quality ASTM A252 pipe will fail due to improper thickness or splicing. Allland Steel Pipe are guided by data-driven selection and precise splicing.

Step 1: Select the Wall Thickness using the Pipe Wall Thickness Chart

The thickness of the pipe wall directly affects the ability of the pile to resist extrusion, bending under lateral loads and corrosion over time. Engineers rely on a pipe wall thickness chart—aligned with ASTM A252 and SY/T 5037 standards—to select the optimal thickness based on:

• Outer diameter of steel pipe: A larger diameter requires thicker walls to maintain stability.
• Design load: Higher axial/bending loads require thicker walls.
• Soil conditions: Dense, rocky soils require thicker walls to resist driving impact.
• Corrosive environment: marine/industrial environment requires extra thickness of corrosion allowance.

Understanding Pipe Schedule (SCH)

The Schedule of Piping (SCH) is a standardized system (defined by ASME B36.10), which classifies the wall thickness according to the diameter of piping. For steel pipe piles, the common schedules include.

• SCH 40: standard wall thickness-carbon steel pipe, most widely used in general piling works.
• SCH 80: thick wall-suitable for heavy-load bridge piling and rock soil conditions.
• SCH 20: Thin-wall used for light load and low stress projects.

Example: ASTM A252 Grade Wall Thickness Selection

For ASTM A252 piles (bridge foundation, 50 meters deep) with an outer diameter of 1000mm in medium-density soil.

• Proposed schedule: SCH 40
• Wall thickness: 12.7mm
• Reason: Balances strength (resisting driving pressure) and cost (avoiding over-engineering).

Step 2: Mastering Pipe Pile Splicing Procedure

Most of the driven steel piles need to be spliced to reach the required depths. Correct splicing can maintain strength, alignment and corrosion resistance, which is very important for the integrity of pipe pile foundation. Allland Steel Pipe follows ASTM A252 guidelines: square-cut/beveled ends, precise alignment, full penetration welding, inspection, and weld coating.

1. End Preparation: Square-cut pipe ends, beveled at 30–35 degrees for full penetration welding.
2. Centering: use internal/external fixture to ensure concentric centering (offset ≤ 1 mm).
3. Welding: full penetration girth weld with E70 covered electrodes (matching with ASTM A252 steel grade) is adopted.
4. Inspection: Magnetic particle inspection (MPT) or ultrasonic inspection (UT) to verify the integrity of the weld.
5. Corrosion Protection: Coat the weld area with FBE-coated steel pipe or 3LPE-coated pipe material to match the pile’s corrosion protection.

Carbon Steel Pipe Price: Balance Thickness and Cost

Although thicker walls increase strength, they also increase the price of carbon steel pipes. Allland Steel Pipe helps customers optimize their costs in the following ways:

• Recommended ASTM A252 and the minimum thickness required under soil/load conditions.
• Offering Allland DSAW pipe (double-submerged arc welded) with precise thickness control—reducing material waste.
• Provide bulk discounts for large steel pipe pile orders.

Corrosion Resistance: Protecting Infrastructure in a Harsh Environment

In marine, coastal or industrial environments, steel pipe piles face serious corrosion. Exposed carbon steel will rust and become thinner, resulting in failure. For offshore and port projects, anticorrosion is very important to extend service life from 20-30 years to more than 50 years. Allland Steel Pipe shall be provided with anti-corrosion solutions that meet global standards to protect pipe pile foundations.

The Two Most Effective Corrosion Protection Systems

For steel pipe piling, two coatings dominate the market: 3LPE coated pipe (Three-Layer Polyethylene) and FBE coated steel pipe (Fusion-Bonded Epoxy). Each system has its own unique advantages, and Allland Steel Pipe can help customers choose the appropriate system according to the environment, budget and project requirements.

Why is 3LPE-Coated Pipe the First Choice for Offshore Piling?

For offshore and salt water environment, 3LPE-coated pipe is better. Its three layers (epoxy primer, adhesive and PE outer layer) can prevent corrosion, ensure the integrity of the layers and resist wear/impact during installation and long-term use.

1. Epoxy Primer: Bonds tightly to steel, preventing corrosion initiation.
2. Bonding Layer: bridging epoxy and PE to ensure the integrity of the layer under temperature fluctuations.
3. PE outer layer: wear resistance, impact resistance and salt water penetration resistance, which is very important in driving and long-term service.

3LPE-coated pipes of Allland Steel Pipe meet SY/T 0413 and ISO 21809-1 standards, and the minimum coating thickness is 2.5 mm for offshore projects. Every pipe has undergone rigorous testing to ensure quality and long-term corrosion resistance.

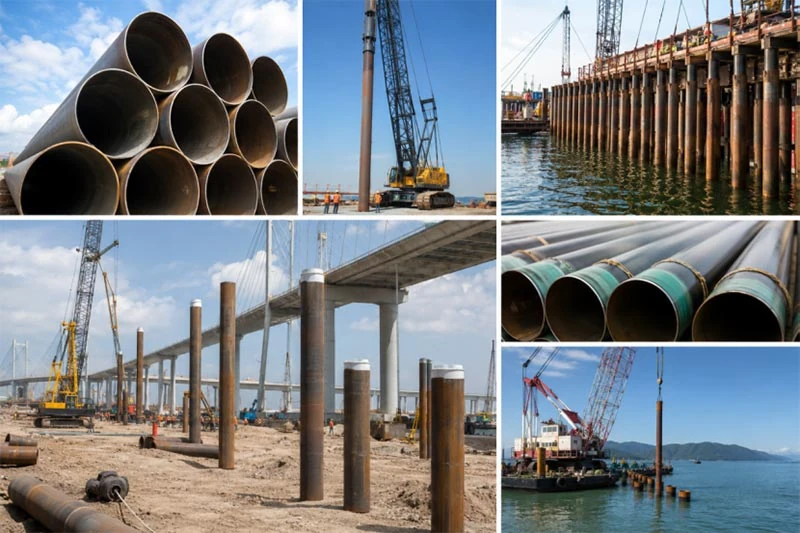

Application Areas: From Maritime Terminals to bridge Foundations

The ASTM A252 steel pipe piles of Allland Steel Pipe are the pillars of global key infrastructure. Our driven piles combine ASTM A252 strength, SSAW cost-effectiveness and 3LPE/FBE corrosion protection to provide reliable pipe pile solutions.

1. Maritime and Offshore Docks

Offshore oil pipelines and ports rely on Allland’s 3LPE-coated ASTM A252 Grade 3 piles (600-1,800 mm in diameter) for corrosion resistance and impact resistance.

2. Bridge piling (Including API 5L X65 Application)

Long-span bridges need high-strength bridge piles. Allland provides ASTM A252 piles (usually API 5L X65) for bridge foundations all over the world, providing excellent bearing capacity and stability.

3. Urban Deep Foundations & High-Rise Buildings

A dense urban environment needs a pipe pile foundation solution that penetrates deep soil and supports high-rise structures. Allland Steel Pipe’s ASTM A252 Grade 2/3 piles, ranging from 400 mm to 1200 mm in diameter, are ideal for residential, commercial and industrial high-rises buildings. Compared with LSAW alternatives, our SSAW piles reduce costs by 15%, which is very suitable for large-scale urban development.

4. Water Conveyance and Pipeline Structures

Drinking water pipelines and sewage treatment projects use steel pipe piles as structural support to cross rivers and stabilize pipeline bridges. Allland Steel Pipe provide FBE-coated ASTM A252 piles for a freshwater environment to ensure corrosion resistance and compliance with water quality standards. Our structural fittings (elbows, tees, flanges) conform to ASTM A252 specifications and can be seamlessly integrated.

Pipe and Piling for Sale: Allland Steel Pipe‘s Global Reach

As a leading steel pipe manufacturer, Allland Steel Pipe provides a full range of pipe and piling products, including ASTM A252 piles, SSAW/LSAW pipes and 3LPE/FBE coated solutions. Our large-diameter steel pipes are competitive in cost per foot, and there are volume discounts. We deliver them on time and have passed the ASTM and ISO certifications.

FAQ

Q 1: What is the difference between ASTM A252 and API 5L?

A 1: ASTM A252 is designed for structural steel pipe piling (load-bearing), while API 5L is designed for pressure-bearing pipes (oil/gas/water transportation). ASTM A252 does not require a hydrostatic pressure test, which makes piling more cost-effective.

Q 2: Can SSAW pipes be used for ASTM A252 tertiary piling?

A 2: That’s right. The SSAW pipe manufactured according to SY/T 5037 can meet the mechanical properties of ASTM A252 (yield strength ≥45000 psi). Allland Steel Pipe regularly supplies SSAW ASTM A252 Grade 3 piles for heavy-duty projects.

Q 3: What is the typical life span of 3LPE-coated ASTM A252 pipe piles?

A 3: Under the condition of correct installation and maintenance, the service life of 3LPE-coated ASTM A252 piles in a marine environment is 50-70 years, compared with that of uncoated bare steel, which is 20-30 years.

Q 4: What size ASTM A252 pipe piles does Allland Steel Pipe offer?

A 4: Allland Steel Pipe is supplied with ASTM A252 piles, with diameters ranging from 219 mm (NPS 8) to 2,032 mm (NPS 80) and wall thicknesses ranging from 6 mm to 50 mm, covering all common pipe pile sizes of global projects.

Q 5: Is ASTM A252 suitable for earthquake zones?

A 5: Of course. The high yield strength (45,000 psi) and ductility of ASTM A252 Grade 3 make it an ideal material for seismic zones, because it can absorb and dissipate seismic energy without catastrophic damage.

Conclusion

ASTM A252 is the foundation of heavy-duty steel pipe pile. Led by Grade 3, it provides unparalleled strength for pipe pile foundations. Combined with the cost efficiency of SY/T 5037 SSAW and the corrosion protection of 3LPE/FBE, it provides unparalleled performance.

As a reliable manufacturer of carbon steel pipe, Allland Steel Pipe provides ASTM A252 piling solutions (SSAW, LSAW, coated) meeting global standards, with strict quality control and customized and balanced heavy-duty options.
