Brief Introduction

In the demanding fields such as mining, dredging and concrete pumping, pipeline failure is not only an inconvenience but also a major operational risk, which will lead to costly downtime, potential safety hazards and productivity loss. If you are in these industries, you will know that the weakest link in the transmission line of slurry or abrasive material is often the connection point. Standard piping connections can wear down rapidly under the relentless assault of sand, gravel, and tailings. This is the difference of a special heavy-duty solution: the shoulder pipe.

What is a Shoulder End Pipe? (and the difference between it and grooved pipe)

At its core, a shoulder end tube is a standard steel tube, which has been modified with an important enhancement. In the manufacturing process, a thick steel ring or collar is welded at both ends of the pipe. This ring creates a distinct, raised “shoulder” .

Compared with the standard grooved steel pipe, the key difference lies in the way of creating connection points.

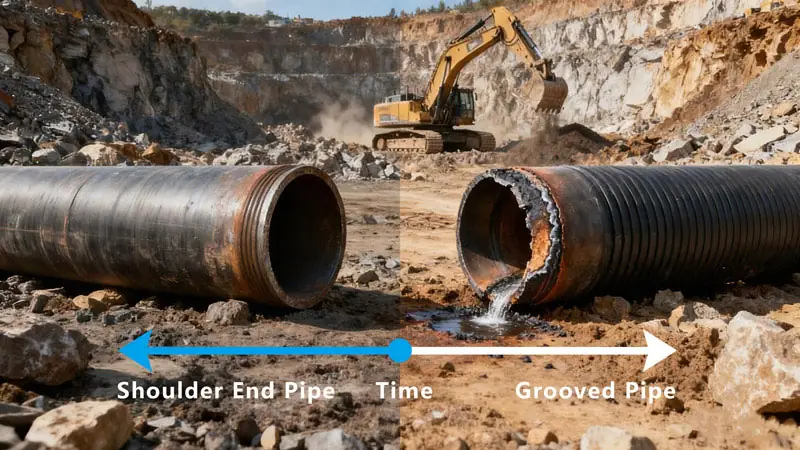

why buy a shoulder pipe a cost and durability analysis



  • Grooved Pipe: For a standard grooved pipe, a groove are cut or rolled on the wall of the pipe. This method removes material and effectively thinning the wall at the most critical stress and wear point. In grinding applications, this thinned part can wear at an alarming rate, leading to leakage and connection failure.
  • Shoulder End Pipe: In contrast, the shoulder pipe adds material. The wall of the base pipe remains 100% intact, maintaining its complete structural integrity. The welded-on ring takes all the mechanical load from the coupling. This basic design concept – increasing strength instead of reducing materials is the reason why it performs well in harsh conditions.

Therefore, the shoulder pipe is the industry standard for key and high wear applications, such as mine tailing pipelines, mortar transportation, and dredging pipelines, in which connection failure is unacceptable.

Why Buy a Shoulder Pipe? A Cost and Durability Analysis

When evaluating pipeline components, the initial purchase price only accounts for a small part of the total cost of ownership. When you analyze the performance of the shoulder pipe in the whole life cycle, its real value becomes obvious.

1. The Durability and Lifespan Advantage

The main reason for choosing shoulder pipe is their unparalleled durability. When conveying abrasive slurry (a mixture of water and solid particles, such as sand, rocks, or mineral tailings), the inside of the pipeline will be corroded over time. Due to turbulence, the wear at the connection point is the biggest.

In a grooved steel pipe, the already-reduced wall thickness at the groove becomes the Achilles’ heel. This is often the first place to wear it. A shoulder tube completely eliminate this weakness. Because the inner wall of the base pipe is not touched, it maintains uniform thickness from one end to the other, thus providing consistent wear resistance. The welding ring located outside the flow passage handles the mechanical connection without damaging the internal integrity of the pipeline. This greatly prolongs the service life, sometimes several times that of the same grooved pipe.

2. Realistic Cost Analysis: price and total cost

Let’s break down the financial data, which is very important for any buyer’s guide.

Initial price: The initial price of shoulder pipe is indeed higher than that of standard grooved steel pipe. This cost reflects the extra material (the steel rings) and professional labor required for high quality and full penetration welding.

Total Lifecycle Cost: This is where the shoulder pipe proves its worth. Although the upfront cost is higher, the significant extension of service life means that the frequency of replacing pipes and joints will be greatly reduced. This directly translates into:

  • The cost of replacing parts is reduced.
  • It saves a lot of labor for emergency stop and maintenance.
  • Minimizing the production downtime is usually the most important cost in mining and dredging operations.

According to a study on the wear in mining pipelines by the National Institute for Occupational Safety and Health (NIOSH), improper selection of materials can lead to a 10-fold increase in maintenance costs during the life of the project. (Source: NIOSH – Abrasive Wear in Mining Pipelines).

The Buyer’s Checklist for Ordering Shoulder Pipe

To ensure that you get the right product to meet your needs, please use this checklist when ordering shoulder pipe.

1. Specify ring standard: the most critical detail is the specification of the welded shoulder ring. It must meet certain size standard (such as, Victaulic Style 99 or an equivalent manufacturer’s specification) to ensure full compatibility with the corresponding shoulder pipe coupler. Provide the standard and size to the supplier.

2. Define the base pipe specifications: Don’t forget the pipe itself. You need to specify the material grade (such as, ASTM A 53 or API 5l B) and the most important wall thickness (attached table). Foundation steel pipe must meet the pressure and corrosion requirements of the system.

3. Verify welding and quality assurance: always ask your supplier about their welding and quality control agreements. The welding seam of the connecting rings must be full penetration and strong. Reputable suppliers will perform visual inspections (VT) and often non-destructive testing to ensure weld integrity and prevent future leaks. A quality of high-quality steel pipe depends on its weld seam.

Summary

In short, the shoulder end tube is the champion specially made for grinding and high-stress applications. Its design adds a solid shoulder ring to a full-thickness steel pipe, which makes it more durable than standard grooved pipe fundamentally. Although the initial price is high, the long-term savings due to the significant reduction of downtime and replacement requirements make it the most cost-effective solution for important industries such as mining and dredging.

When the reliability of pipeline is not negotiable, choosing a shoulder pipe is the best decision for your project bottom line and operational continuity. For a high-quality shoulder pipe, strong welding and accurate size are guaranteed, and I believe experts. All Land Steel offers professional shoulder pipe machining services, ensuring every product meets rigorous standards. Please contact us immediately for a customized solution and a competitive quotations.

Frequently Asked Questions (FAQ)

Question 1: Can I use standard groove pipe joint on a shoulder pipe?

Answer: Absolutely not. Shoulder tube needs special shoulder joint. These couplings are designed for clamping the outer shoulder of the ring, not the inner groove. Using the wrong coupling is useless and dangerous. Always purchase the correct connection system designed for shoulder pipe.

Question 2: What pipe is the best for dredging sand?

Answer: The shoulder pipe are widely considered as the best choice for dredging sand. The wear characteristics of mortar will rapidly degrade the performance of standard connectors. The shoulder pipe‘s ability to maintain full wall thickness at the pipe ends provides unmatched resistance to wear, making it the industry-preferred steel pipe for dredging.
