Introduction

As a project manager or procurement specialist, you are tasked with sourcing high-strength pipe for a critical pipeline. One specification appears more than any other: API 5L X52 (or its metric equivalent, L360). This grade is widely regarded as the industry’s “sweet spot,” offering the best balance between mechanical performance and economic viability. But when the quotations arrive, you’re faced with a critical and costly problem. One supplier offers X52 PSL1 at a low price. Another offers API 5L X52 PSL2 at a 20% higher cost. Buying the wrong one means you are either wasting your budget or, far worse, compromising your project’s safety. This guide is your definitive answer. We will explain what is API 5L X52 pipe and provide a deep, data-driven analysis of its specification, focusing on the most critical procurement decision: PSL1 vs. PSL2.

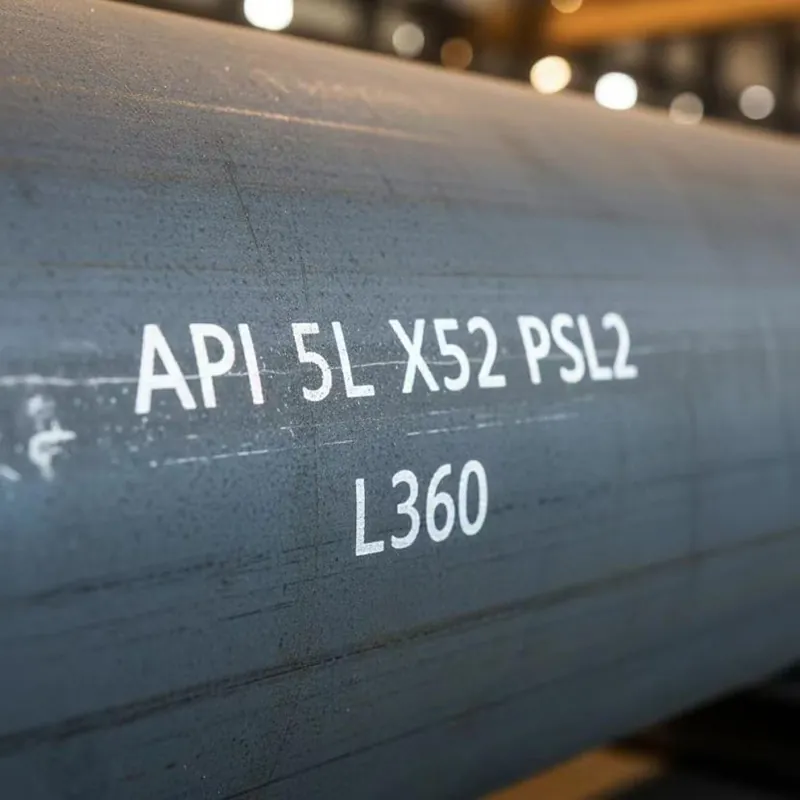

api 5l x52 psl2 l360 pipe specification.



What is API 5L X52 Pipe?

At its core, API 5L X52 pipe is a grade of steel line pipe defined by the API 5L Specification. This standard governs the manufacturing, chemical composition, and mechanical properties of steel pipe used for transporting oil, gas, and water. The “X52” designation is simple: it means the pipe has a minimum yield strength (MYS) of 52,000 psi (or 52 ksi). Its metric equivalent is L360, meaning a minimum yield strength of 360 Megapascals (MPa).

The Core Value Proposition: The Best Balance of Cost vs. Strength

Why would a buyer buy API 5L X52 pipe instead of the cheaper, lower-grade X42? The answer is Total Project Cost. The api 5l x52 vs x42 cost per ton for X52 is slightly higher, but its superior strength allows an engineer to design a pipeline with a thinner wall thickness that can handle the same operating pressure as a thicker X42 pipe. This “sweet spot” advantage results in massive savings:

1. Lower Material Cost: You are simply buying less steel tonnage.

2. Lower Shipping Cost: Your total freight tonnage from the api 5l x52 supplier is reduced.

3. Lower Installation Cost: Lighter pipe is faster and cheaper for crews to handle, lift, and weld.

The Main Price & Spec Driver: PSL1 vs. PSL2

This is the most important aspect of purchasing x52 pipe. The price difference x52 psl1 vs psl2 is quite high and for the reason of a basic difference in quality, testing and safety.PSL means Product Specification Level.

API 5L X52 PSL1

This is the regular quality grade of line pipe. It covers the minimum chemical and mechanical requirements of X52. It is a dependable product ideal for general fluid conveyance.This is your bottom cost option when you buy API 5L X52 pipe.

API 5L X52 PSL2

This is the top quality, high integrity level. It is compulsory for more severe service (high pressure, low temperature, or sour service).The api 5l x52 psl2 price is high as you are buying some assured that is safe to use and can perform well.

Why is API 5L PSL2 More Expensive? You are paying for these mandatory requirements that do not exist in PSL1:

· Mandatory Toughness Testing (The Biggest Cost Factor): PSL2 needs a Charpy V-Notch (CVN) impact testing. This is a costly, destructive test that shows the pipe is tough enough not to become brittle and break in the cold. This is the number one contributor to the higher cost.

· Stricter Chemical Composition: PSL2 requires that the maximum Carbon Equivalent (CEq).This “cleaner” steel welds dramatically better with less risk, saving you significant cost and risk in field welding on site.

· Yield and Tensile Strength Maximums: PSL1 defines only a minimum value for yield strength. PSL2 defines a minimum value and a maximum one.This is very important for engineers which design pipelines in seismically active areas or for sour service, because it keeps the pipe from becoming “too strong” and brittle.

In short, buying PSL1 is a standard purchase; buying PSL2 is a high-assurance investment in safety and weldability.

Manufacturing Type & Your Cost (Connecting to Allland)

The API 5L X52 specification applies to all manufacturing methods. The method you choose is highly dependent on your diameter needs and will heavily influence your cost.

· Seamless (SMLS): This pipe is pierced from a solid billet. It is an excellent product but has the highest cost and is generally limited to smaller diameters (e.g., under 20 inches).

· LSAW & SSAW (The Best Cost for Large Diameters): When you need to buy api 5l x52 pipe in large diameters (e.g., 24 inches to 80 inches or more), welded pipe is the most cost-effective solution.

LSAW pipe api 5l x52: Longitudinal Submerged Arc Welded pipe is the premier choice for high-pressure, thick-wall applications.

SSAW pipe api 5l x52: Spiral Submerged Arc Welded pipe is extremely cost-effective for very large-diameter, medium-pressure lines.

As a specialist LSAW pipe manufacturer and SSAW pipe supplier, Allland is your professional source for buying large-diameter X52 pipe, manufactured to either PSL1 or PSL2.

Part 4: The API 5L X52 Specification Data Sheets

These tables, based on the API 5L standard, show the exact differences you are paying for.

Table 1: API 5L X52 Chemical Composition (PSL1 vs. PSL2)

Element PSL1 (Mass %) PSL2 (Mass %) Buyer’s Insight
Carbon (C) ≤ 0.28 ≤ 0.24 PSL2 is lower, guaranteeing better weldability.
Phosphorus (P) ≤ 0.030 ≤ 0.025 PSL2 is lower, reducing the risk of brittleness.
Sulfur (S) ≤ 0.030 ≤ 0.015 PSL2 is 50% lower, resulting in “cleaner” steel.
Carbon Eq. (CEq) Not Required ≤ 0.43 PSL2 is mandatory. This is the most critical guarantee of good weldability.

Table 2: API 5L X52 Mechanical Properties (PSL1 vs. PSL2)

Property PSL1 PSL2 Buyer’s Insight
Yield Strength (MYS) 52,000 psi (360 MPa) – Min 52,000 psi (360 MPa) – Min Both have the same minimum strength.
Yield Strength (MYS) No Maximum 77,000 psi (531 MPa) – Max PSL2 is mandatory. This prevents over-strength/brittle pipe.
Tensile Strength (UTS) 66,700 psi (460 MPa) – Min 66,700 – 110,200 psi PSL2 also has a defined maximum tensile strength.
Fracture Toughness (CVN) Not Required Mandatory Testing This is the reason for the cost difference! You are paying for a guarantee that the pipe will not fail.

Conclusion

The API 5L X52 pipe is considered as the best choice in terms of high strength and good value for money. But as a purchaser, your procurement option is not merely “X52”; you are faced with a fundamental choice between two very different products: PSL1 and PSL2. Your decision tree should be this: Buy PSL1 for standard, low-risk service where the biggest factor in your calculation is cutting the api 5l x52 pipe price bill. Get PSL2 for anything critical, high-pressure or low-temperature related, if you want to pay more for proven toughness, better weldability and a guarantee of safety. Allland, a leading API 5L LSAW pipe manufacturer and SSAW pipe supplier, knows this balancing act between cost and compliance better than most. We don’t just sell pipe ; we provide a fully certified, cost effective solution.Contact our technical team today with your api 5l x52 specification and we will give you a transparent, competitive price for the specific grade (PSL1 or PSL2) your project needs.

Frequently Asked Questions (FAQ)

Q1: What is the significant price difference for API 5L X52 and X42?

A1: The api 5l x52 vs x42 price for X52 is just a little higher(e.g. 5-10%) But since X52 is stronger you can usually get by with a thinner walled pipe at the same pressure. This decrease in total tons (total weight) often results the total job cost for X52 being less than for X42.

Q2: Why is API 5L X52 PSL2 so expensive compared to PSL1?

A2: The difference between x52 psl1 vs psl2 prices is large because you are buying some obligatory, costly tests. The main added cost is the Charpy V-notch (CVN) impact test, which is destructive and must be performed on every batch of PSL2 pipe to ensure its toughness. The tighter chemistry and 100% NDT also increase the cost.

Q3: What is the best manufacturing process for 40 inch X52 pipe?

A3: LSAW Pipe at any large diameter lsaw pipe (e.g. 40 inch), is the best and most cost-effective option to buy a welded product such as LSAW pipe api 5l x52 or SSAW pipe api 5l x52. Seamless pipe is usually not available or is too expensive for making it.
