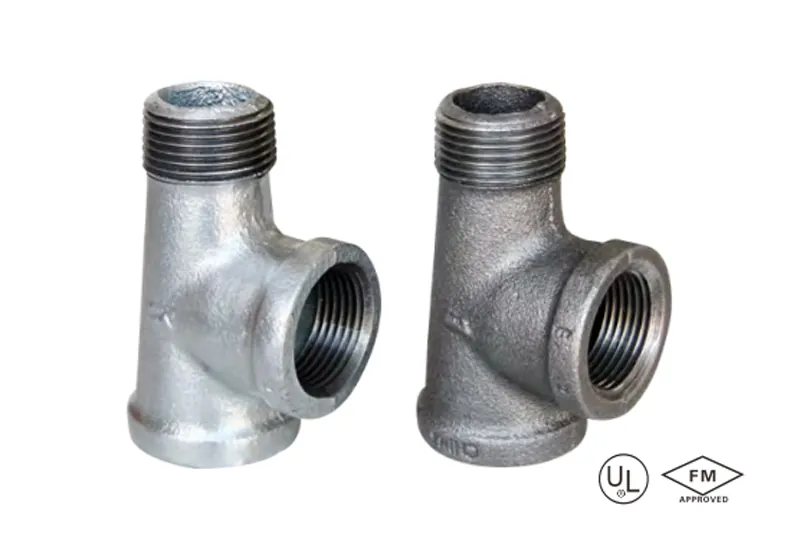

Malleable iron service tee
·Standard: ANSI/ASME B16.3
UL/FM
·Material: Malleable iron ASTM A197
·Thread: NPT
·W. pressure: Class 150, 300 psi (-29°C to 66°C)
·Surface: Black iron / hot dip galvanized
·Size Range: 1/4″ —2″ (Class 150)
description
Malleable iron service tee enables smooth diagonal branching, offers firm connection, corrosion resistance, pressure resistance and high adaptability.

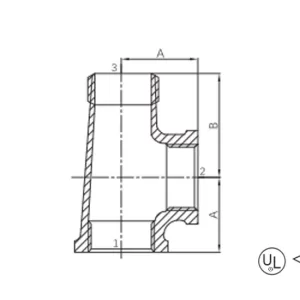

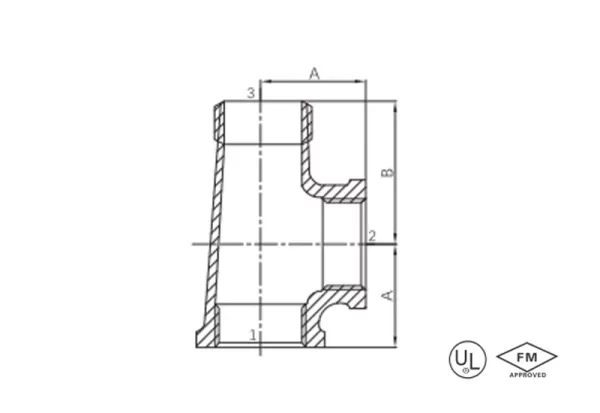

Specification
Available size
SIZE(1 x 3 x 2) | A | B | ||
INCH | DN | MM | MM | MM |
1/4″ | 8 | 13.7 | 20.6 | 30.2 |
1/2″ | 15 | 21.3 | 28.5 | 41.2 |
3/4″ | 20 | 26.7 | 33.3 | 48 |
1″ | 25 | 33.4 | 38.1 | 54.4 |
1-1/4″ | 32 | 42.2 | 44.5 | 62.2 |
1-1/2″ | 40 | 48.3 | 49.3 | 68.3 |
2″ | 50 | 60.3 | 57.2 | 82.8 |
application
- Municipal pipeline pressure tapping: Diagonally insert metering or pressure-reducing branch pipes into water supply/gas pipelines without interrupting service.
- Online retrofitting of petrochemical facilities: Connect spark-free safety relief or sampling monitoring branch lines to main pipelines carrying flammable and explosive media.
- Data center cooling upgrade: Diagonally connect branches to the refrigerant pipes of precision air conditioners in operation to support server cabinet expansion.
- Ship power system maintenance: Add drainage or inspection branches to the main steam power pipeline while the ship is in operation to avoid downtime losses.
advantages
- Diagonal branch design: the 45° branch reduces system disturbance and flow imbalance in operation, branches are smoothly inserted into pipes.
- High-sealing bullet: reinforced interface design, reliable sealing even in eccentric load for a long time
- Food and beverage grade Capable of withstanding high-pressure fluids and environmental corrosion: Malleable cast iron as substrate + galvanized/black iron surface.
- Maintenance convenient: once the installation online, pipeline expansion transformation does not need to take over the maintenance and treatment of pipe.
- Compliant to International Standards: ANSI/UL ensures the safety and compatibility of maintenance and renovation projects.
packing
- Individual protection: Double wrapping with bubble wrap and rust-proof paper, with special protection for threaded joints.
- Categorized packing: Products of the same size are stacked in layers, and the carton is filled with shock-absorbing wood shavings.
- Clear labeling: The outer carton is labeled with dimensions, quantity, moisture-proof markings, and installation direction arrows.
- Bulk reinforcement: Pallets are strapped together and adapted for loading into land/sea freight containers.
