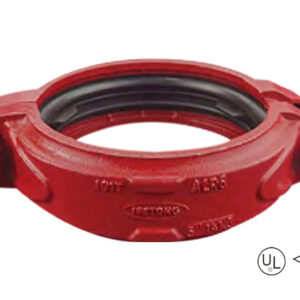

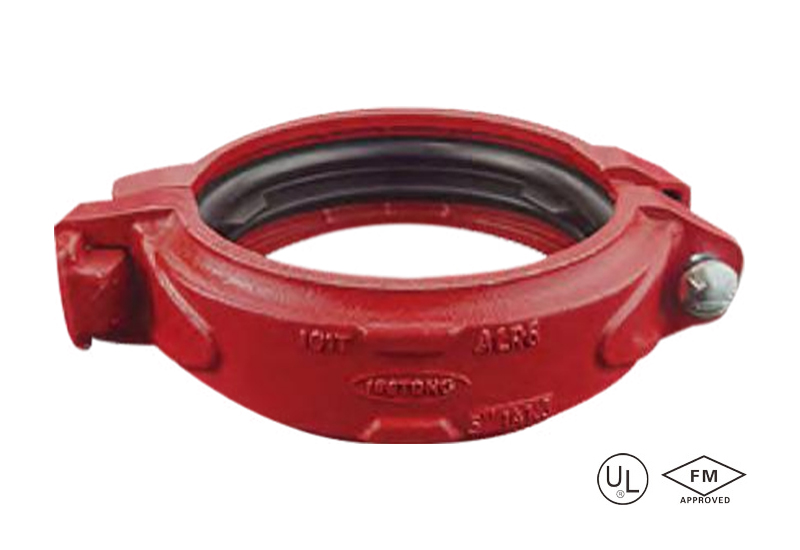

Quikcoup one bolt rigid grooved coupling
·Standard: ANSI / UL 213 UL / FM
·Material: Ductile iron ASTM A536, 65-45-12
·Bolt & nut: Carbon steel
·Gasket: EPDM, nitrile, silicone rubber, etc
·Rated pressure: 300 – 500 psi
·Surface: Red painting / hot dip galvanized
·Size range: 1″ – 6″
description
Quikcoup one bolt rigid grooved coupling is a type of pipe that uses a single bolt for fastening and is composed of ductile iron housing, sealing gaskets, etc. It achieves rigid pipe connection through grooved connection
Specification
Available size

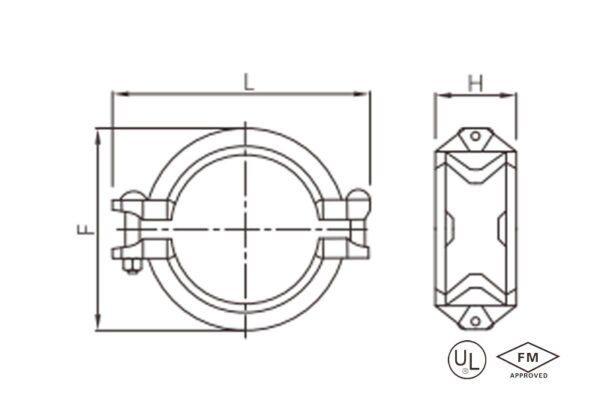

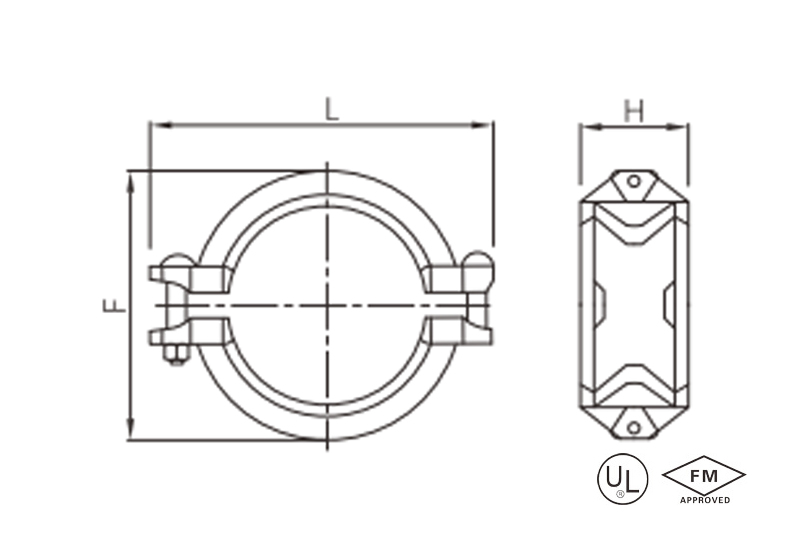

Size | Dimension (mm) | Bolting (n x bolt size) | |||||
Inch | DN | mm | F | L | H | ANSI | EN |
1″ | 25 | 33.7 | 57 | 99 | 48 | 1 – 3/8″ × 55 | 1 – M10 × 55 |
1-1/4″ | 32 | 42.4 | 64 | 108 | 48 | 1 – 3/8″ × 60 | 1 – M10 × 60 |
1-1/2″ | 40 | 48.3 | 70 | 114 | 48 | 1 – 3/8″ × 60 | 1 – M10 × 60 |
2″ | 50 | 60.3 | 84 | 128 | 48 | 1 – 3/8″ × 65 | 1 – M10 × 65 |
2-1/2″ | 65 | 73.0 | 96 | 140 | 48 | 1 – 3/8″ × 70 | 1 – M10 × 70 |
2-1/2″ | 65 | 76.1 | 100 | 144 | 48 | 1 – 3/8″ × 70 | 1 – M10 × 70 |
3″ | 80 | 88.9 | 114 | 168 | 48 | 1 – 1/2″ × 80 | 1 – M12 × 80 |
4″ | 100 | 114.3 | 143 | 194 | 50 | 1 – 1/2″ × 80 | 1 – M12 × 80 |
5″ | 125 | 139.7 | 172 | 228 | 50 | 1 – 1/2″ × 85 | 1 – M12 × 85 |
5″ | 125 | 141.3 | 174 | 230 | 50 | 1 – 1/2″ × 85 | 1 – M12 × 85 |
6″ | 150 | 165.1 | 198 | 256 | 51 | 1 – 1/2″ × 90 | 1 – M12 × 90 |
6″ | 150 | 168.3 | 201 | 259 | 51 | 1 – 1/2″ × 90 | 1 – M12 × 90 |
application
- High-speed installation: Especially for large repair of emergency accidents and rapid building projects, such as the sudden maintenance of municipal water supply systems or factory production lines caused by stoppage;
- Single-Handed Operation Environment: Perfect for single-handed operating conditions, such as high altitude construction and small size trench, to help solve the problems of inadequate operation space.
- Leak-Free Critical Environments: Pipe Connections standard for leak-free environments i.e hospitals, Laboratories.
- For small to medium pipe diameters, a flexible connector: it is designed for connections with conventional pipes from 1” through 6” (DN25-DN150) and goes with this type of pipes such as steel or ductile iron.
advantages
1. One Second Tightening: The innovative single bolt design seals simply with just one bolt, providing a 90% faster hookup.
2. One-hand operation: light weight + Simple installation process, without the need for tool, one person could complete it within a few seconds.
3. Absolute no displacement setting, pipe vibration resistance, and long-term stabilization of the same alignment.
4. Zero leakage for water, oil and gas media due to high quality rubber gaskets (e.g. EPDM)
5. Corrosion Resistant: Ductile iron body with a rust prevention coating perfect for moist and underground conditions, extends the working life to over 25 years.
6. Zero-Waste Maintenance: For repeated disassembly and reassembly, it can be reused in this class with parts that are available and affordable.
packing
- Pocket-sized portable packaging:
- Each piece is individually stored within a hard case (about the size of a pencil case) accompanied by cushioning foam inside causing them portable.
- Bolt Anti-Loss Design:
- The connector slots are pre-fitted with the bolts (no more opening of the packaging) and additional washers should be in individual sealed bags.
- Optimized for Bulk Transportation:
- Small pallets are filled with paper boxes and stacked, where one pallet can hold up to 50 units, secured by a stretch film and in this convenient form quickly transported whenever the entire pallet is required.
Available size

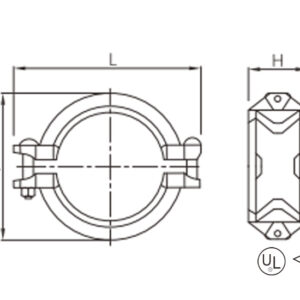

Size | Dimension (mm) | Bolting (n x bolt size) | |||||
Inch | DN | mm | F | L | H | ANSI | EN |
1″ | 25 | 33.7 | 57 | 99 | 48 | 1 – 3/8″ × 55 | 1 – M10 × 55 |
1-1/4″ | 32 | 42.4 | 64 | 108 | 48 | 1 – 3/8″ × 60 | 1 – M10 × 60 |
1-1/2″ | 40 | 48.3 | 70 | 114 | 48 | 1 – 3/8″ × 60 | 1 – M10 × 60 |
2″ | 50 | 60.3 | 84 | 128 | 48 | 1 – 3/8″ × 65 | 1 – M10 × 65 |
2-1/2″ | 65 | 73.0 | 96 | 140 | 48 | 1 – 3/8″ × 70 | 1 – M10 × 70 |
2-1/2″ | 65 | 76.1 | 100 | 144 | 48 | 1 – 3/8″ × 70 | 1 – M10 × 70 |
3″ | 80 | 88.9 | 114 | 168 | 48 | 1 – 1/2″ × 80 | 1 – M12 × 80 |
4″ | 100 | 114.3 | 143 | 194 | 50 | 1 – 1/2″ × 80 | 1 – M12 × 80 |
5″ | 125 | 139.7 | 172 | 228 | 50 | 1 – 1/2″ × 85 | 1 – M12 × 85 |
5″ | 125 | 141.3 | 174 | 230 | 50 | 1 – 1/2″ × 85 | 1 – M12 × 85 |
6″ | 150 | 165.1 | 198 | 256 | 51 | 1 – 1/2″ × 90 | 1 – M12 × 90 |
6″ | 150 | 168.3 | 201 | 259 | 51 | 1 – 1/2″ × 90 | 1 – M12 × 90 |
- High-speed installation: Especially for large repair of emergency accidents and rapid building projects, such as the sudden maintenance of municipal water supply systems or factory production lines caused by stoppage;
- Single-Handed Operation Environment: Perfect for single-handed operating conditions, such as high altitude construction and small size trench, to help solve the problems of inadequate operation space.
- Leak-Free Critical Environments: Pipe Connections standard for leak-free environments i.e hospitals, Laboratories.
- For small to medium pipe diameters, a flexible connector: it is designed for connections with conventional pipes from 1” through 6” (DN25-DN150) and goes with this type of pipes such as steel or ductile iron.
1. One Second Tightening: The innovative single bolt design seals simply with just one bolt, providing a 90% faster hookup.
2. One-hand operation: light weight + Simple installation process, without the need for tool, one person could complete it within a few seconds.
3. Absolute no displacement setting, pipe vibration resistance, and long-term stabilization of the same alignment.
4. Zero leakage for water, oil and gas media due to high quality rubber gaskets (e.g. EPDM)
5. Corrosion Resistant: Ductile iron body with a rust prevention coating perfect for moist and underground conditions, extends the working life to over 25 years.
6. Zero-Waste Maintenance: For repeated disassembly and reassembly, it can be reused in this class with parts that are available and affordable.
- Pocket-sized portable packaging:
- Each piece is individually stored within a hard case (about the size of a pencil case) accompanied by cushioning foam inside causing them portable.
- Bolt Anti-Loss Design:
- The connector slots are pre-fitted with the bolts (no more opening of the packaging) and additional washers should be in individual sealed bags.
- Optimized for Bulk Transportation:
- Small pallets are filled with paper boxes and stacked, where one pallet can hold up to 50 units, secured by a stretch film and in this convenient form quickly transported whenever the entire pallet is required.
