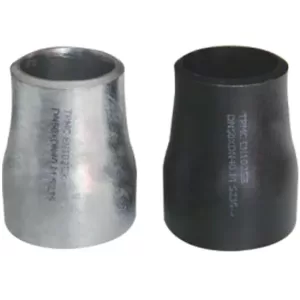

Butt weld concentric reducer
·Standard: ISO
EN 10253-1 / EN 10253-2 / EN 10253-3
·Material: Carbon steel S235 / P235TR2
SS equivalent to WP304 / WP316L
·W. pressure: Equal to same straight pipe
·Surface: Black painting / hot dip galvanized
Pickling white, etc.
·Size range: 3/4″x1/2″—24″x10″
description
butt weld concentric reducer is a conical fitting with compact structure, low flow resistance, high strength, suitable for high pressure systems, easy installation and no risk of leakage.
Specification
Available size

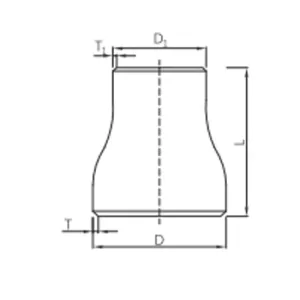

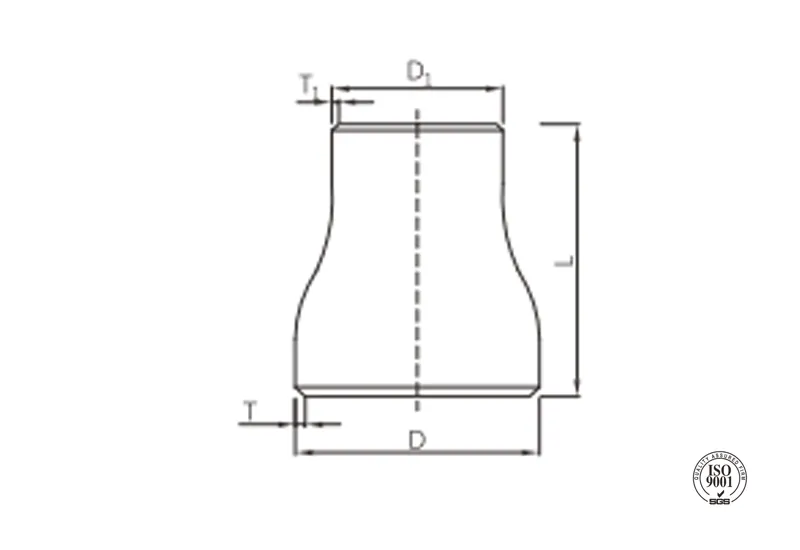

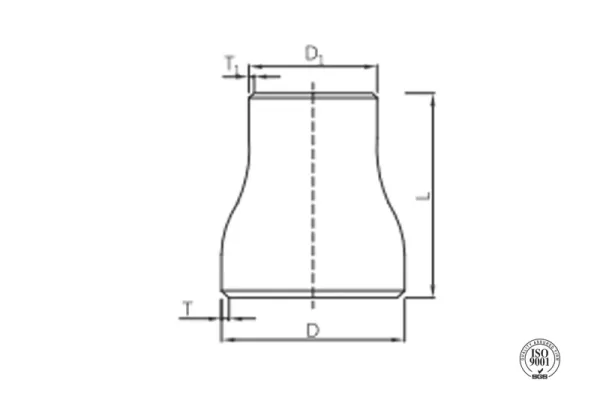

| Size(DXD1) | Preferred T to EN 10253-2 (Large end,mm) | L(mm) | ||
| NPS | DN | OD(mm) | ||
| 3/4″x1/2″ | 20×15 | 26.9×21.3 | 2.3/2.6/3.214.0/4.5/5.6/8.0 | 38 |
| 1″x3/4″ | 25×20 | 33.7×26.9 | 2.6/3.214.0/4.5/5.6/6.3/8.8 | 51 |
| 1″x1/2″ | 25×15 | 33.7×21.3 | 2.6/3.214.014.5/5.6/6.3/8.8 | 51 |
| 1-1/4″x1″ | 32xx25 | 42.4×33.7 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 51 |
| 1-1/4″x3/4″ | 32xx20 | 42.4×26.9 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 51 |
| 1-1/4″x1/2″ | 32×15 | 42.4×21.3 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 51 |
| 1-1/2″x1-1/4″ | 40×32 | 48.3×42.4 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 64 |
| 1-1/2″x1″ | 40×25 | 48.3×33.7 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 64 |
| 1-1/2″x3/4″ | 40×20 | 48.3×26.9 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 64 |
| 1-1/2″x1/2″ | 40×15 | 48.3×21.3 | 2.6/3.6/4.0/5.0/6.3/8.0/10.0 | 64 |
| 2″x1-1/2″ | 50×40 | 60.3×48.3 | 2.9/3.6/4.0/5.617.1/8.8/11.0 | 76 |
| 2″x1-1/4″ | 50×32 | 60.3×42.4 | 2.9/3.6/4.0/5.617.1/8.8/11.0 | 76 |
| 2″x1″ | 50×25 | 60.3×33.7 | 2.9/3.6/4.0/5.6/7.1/8.8/11.0 | 76 |
| 2″x 3/4″ | 50×20 | 60.3×26.9 | 2.9/3.6/4.0/5.6/7.1/8.8/11.0 | 76 |
| 2″x1/2″ | 50×15 | 60.3×21.3 | 2.9/3.6/4.0/5.617.1/8.8/11.0 | 76 |
| 2-1/2″x2″ | 65×50 | 76.1×60.3 | 2.9/3.6/5.6/7.1/8.0/10.0/14.2 | 89 |
| 2-1/2″x 1-1/2″ | 65×40 | 76.1×48.3 | 2.9/3.6/5.617.1/8.0/10.0/14.2 | 89 |
| 2-1/2″x 1-1/4″ | 65×32 | 76.1×42.4 | 2.9/3.6/5.617.1/8.0/10.0/14.2 | 89 |
| 2-1/2″x1″ | 65×25 | 76.1×33.7 | 2.9/3.6/5.617.1/8.0/10.0/14.2 | 89 |
| 2-1/2″x 3/4″ | 65×20 | 76.1×26.9 | 2.9/3.6/5.6/7.1/8.0/10.0/14.2 | 89 |
| 3″x2-1/2″ | 80×65 | 88.9×76.1 | 3.214.0/5.6/8.0/8.8/11.0/16.0 | 89 |
| 3″x2″ | 80×50 | 88.9×60.3 | 3.214.0/5.6/8.0/8.8/11.0/16.0 | 89 |
| 3″x1-1/2″ | 80×40 | 88.9×48.3 | 3.214.0/5.6/8.0/8.8/11.0/16.0 | 89 |
| 3″x1-1/4″ | 80×32 | 88.9×42.4 | 3.214.0/5.6/8.0/8.8/11.0/16.0 | 89 |
| 3″x1″ | 80×25 | 88.9×33.7 | 3.214.0/5.6/8.0/8.8/11.0/16.0 | 89 |
| 4″x3″ | 100×80 | 114.3×88.9 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 4″x2-1/2″ | 100×65 | 114.3×76.1 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 4″x2″ | 100×50 | 114.3×60.3 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 4″x 1-1/2″ | 100×40 | 114.3×48.3 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 4″x 1-1/4″ | 100×32 | 114.3×42.2 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 4″x1″ | 100×25 | 114.3×33.7 | 3.6/4.5/6.3/8.8/11.0/14.2/17.5 | 102 |
| 5″x4″ | 125×100 | 139.7×114.3 | 4.0/5.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x3″ | 125×80 | 139.7×88.9 | 4.0/5.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x 2-1/2″ | 125×65 | 139.7×76.1 | 4.015.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x2″ | 125×50 | 139.7×60.3 | 4.0/5.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x1-1/2″ | 125×40 | 139.7×48.3 | 4.015.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x1-1/4″ | 125×32 | 139.7×42.2 | 4.0/5.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 5″x1″ | 125×25 | 139.7×33.4 | 4.0/5.0/6.3/10.0/12.5/16.0/20.0 | 127 |
| 6″x5″ | 150×125 | 168.3×139.7 | 4.014.5/5.6/7.1/11.0/14.2/17.5/22.2 | 140 |
| 6″x4″ | 150×100 | 168.3×114.3 | 4.014.515.617.1/11.0/14.2/17.5122.2 | 140 |
| 6″x3″ | 150×80 | 168.3×88.9 | 4.014.5/5.6/7.1/11.0/14.2/17.5/22.2 | 140 |
| 6″x2-1/2″ | 150×65 | 168.3×76.1 | 4.014.515.617.1/11.0/14.2/17.5122.2 | 140 |
| 6″x2″ | 150×50 | 168.3×60.3 | 4.014.5/5.6/7.1/11.0/14.2/17.5/22.2 | 140 |
| 6″x1-1/2″ | 150×40 | 168.3×48.3 | 4.014.5/5.6/7.1/11.0/14.2/17.5/22.2 | 140 |
| 6″x1-1/4″ | 150×32 | 168.3×42.2 | 4.014.515.617.1/11.0/14.2/17.5122.2 | 140 |
| 6″x1″ | 150×25 | 168.3×33.4 | 4.014.5/5.6/7.1/11.0/14.2/17.5/22.2 | 140 |
| 8″x6″ | 200×150 | 219.1×168.3 | 4.5/6.317.1/8.0/12.5/16.0/17.5/22.2 | 152 |
| 8″x5″ | 200×125 | 219.1×139.7 | 4.5/6.317.1/8.0/12.5/16.0/17.5/22.2 | 152 |
| 8″x4″ | 200×100 | 219.1×114.3 | 4.5/6.3/7.1/8.0/12.5/16.0/17.5/22.2 | 152 |
| 8″x3″ | 200×80 | 219.1×88.9 | 4.5/6.317.1/8.0/12.5/16.0/17.5/22.2 | 152 |
| 8″x2-1/2″ | 200×65 | 219.1×76.1 | 5.0/6.3/8.8/10.0/12.5/16.0122.2/30.0 | 178 |
| 10″x8″ | 250×200 | 273.0×219.1 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 10″x6″ | 250×150 | 273.0×168.3 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 10″x5″ | 250×125 | 273.0×139.7 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 10″x4″ | 250×100 | 273.0×114.3 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 10″x3″ | 250×80 | 273.0×88.9 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 10″x2-1/2″ | 250×65 | 273.0×73.0 | 5.0/6.3/8.8/10.0/12.5/16.0/22.2/30.0 | 178 |
| 12″x10″ | 300×250 | 323.9×273.0 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x8″ | 300×200 | 323.9×219.1 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x6″ | 300×150 | 323.9×168.3 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x5″ | 300×125 | 323.9×139.7 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x4″ | 300×100 | 323.8×114.3 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x3″ | 300×80 | 323.8×88.9 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 12″x2-1/2″ | 300×65 | 323.8×73.0 | 5.6/7.1/8.8/10.0/12.5/17.5/25.0/32.0 | 203 |
| 14″x12″ | 350×300 | 355.6×323.9 | 5.6/8.0/10.0/12.5/16.0/20.0/28.0/36.0 | 330 |
| 14″x 10″ | 350×250 | 355.6×273.0 | 5.6/8.0/10.0/12.5/16.0/20.0/28.0/36.0 | 330 |
| 14″x8″ | 350×200 | 355.6×219.1 | 5.6/8.0/10.0/12.5/16.0/20.0/28.0/36.0 | 330 |
| 14″x6″ | 350×150 | 355.6×168.3 | 5.6/8.0/10.0/12.5/16.0/20.0/28.0/36.0 | 330 |
| 16″x14″ | 400×350 | 406.4×355.6 | 6.3/8.8/10.0/12.5/17.5/22.2/30.0/40.0 | 356 |
| 16″x12″ | 400×300 | 406.4×323.9 | 6.3/8.8/10.0/12.5/17.5/22.2/30.0/40.0 | 356 |
| 16″x10″ | 400×250 | 406.4×273.0 | 6.3/8.8/10.0/12.5/17.5/22.2/30.0/40.0 | 356 |
| 16″x8″ | 400×200 | 406.4×219.1 | 6.3/8.8/10.0/12.5/17.5/22.2/30.0/40.0 | 356 |
| 16″x6″ | 400×150 | 406.4×168.3 | 6.3/8.8/10.0/12.5/17.5/22.2/30.0/40.0 | 356 |
| 18″x16″ | 450×400 | 457×406.4 | 6.3/10.0/11.0/12.5/17.5/22.2/32.0/45.0 | 381 |
| 18″x14″ | 450×350 | 457×355.6 | 6.3/10.0/11.0/12.5/17.5/22.2/32.0/45.0 | 381 |
| 18″x12″ | 450×300 | 457×323.9 | 6.3/10.0/11.0/12.5/17.5/22.2/32.0/45.0 | 381 |
| 18″x 10″ | 450×250 | 457×273.0 | 6.3/10.0/11.0/12.5/17.5/22.2/32.0/45.0 | 381 |
| 18″x8″ | 450×200 | 457×219.1 | 6.3/10.0/11.0/12.5/17.5/22.2/32.0/45.0 | 381 |
| 20″x18″ | 500×450 | 508×457 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 20″x 16″ | 500×400 | 508×406.4 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 20″x14″ | 500×350 | 508×355.6 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 20″x12″ | 500×300 | 508×323.9 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 20″x10″ | 500×250 | 508×273.0 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 20″x8″ | 500×200 | 508×219.1 | 6.3/10.0/11.0/12.5/17.5/25.0/36.0/50.0 | 508 |
| 24″x 20″ | 600×500 | 610×508 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
| 24″x 18″ | 600×450 | 610×457 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
| 24″x 16″ | 600×400 | 610×406.4 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
| 24″x14″ | 600×350 | 610×355.6 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
| 24″x12″ | 600×300 | 610×323.9 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
| 24″x10″ | 600×250 | 610×273.0 | 6.3/10.0/12.5/17.5/25.0/30.0/45.0/60.0 | 508 |
Note:
- The thickness of above form refers to large end OD, and thickness of small end OD is different.
- For size DN 150, it is also available with 165.1 mm as per EN 10255.
application
- Used for coaxial diameter change connections in piping systems to achieve smooth flow/pressure transition and avoid fluid turbulence impact.
- Specially designed for diameter changes in high-pressure systems, commonly used in key nodes such as pump valve inlets and outlets, instrumentation lines, and main pipeline pressure reduction.
- Indispensable in precision systems that require strict alignment of fluid centerlines (such as pharmaceutical production lines and laboratory piping).
advantages
- Smooth zero interference transition: high-precision conical structure, laminar flow transition can be obtained, 40% lower pressure loss than eccentric reducers.
- Can handle high pressure: integrally forged and fully welded, equal strength with straight pipes to avoid leak risk in bolt connection;
- The space-Optimized Design Saves 50% of the Installation Space, Particularly applicable to small area installation such as equipment room basement small cell.
- Corrosion Protection System of Dual-MaterialConstruction material: Carbon steel, anti-corrosive treatment by hot-dip galvanizing (20 years life duration) or Conventional epoxy powder coating (chemical-resistant)Surface finish of all components: Stainless steel, electrolytic polishing – Ra ≤ 4 μm
- Universal compatibility: it covers the complete range with specifications from 3/4”× 1/2” to 24” × 10”, fulfilling system requirements from DN15 up to DN600.
- Revolution in installation: Welded connections (instead of flange assemblies & reducer sections) reduces leak, and shortens the construction time by over 60% .
packing
- Conical component protection:
- ≤8″: PE foam molded tray + reinforced corrugated box
- 8″: Steel banded wooden box + internal conical support frame
- Differentiated port protection:
- Large diameter end: Biodegradable plastic blind plate + anti-collision rubber ring
- Small-diameter end: Screw-in nylon cover + silicone seal
- Anti-corrosion core technology:
- Carbon steel components: VCI vapor phase anti-corrosion film + anti-corrosion oil coating
- Stainless steel components: Vacuum-sealed moisture-proof aluminum foil packaging
- Smart logistics identification: Laser-engraved flow direction arrows and slope markers, with triple traceability QR codes (specifications/material/process) affixed to the outer box.
