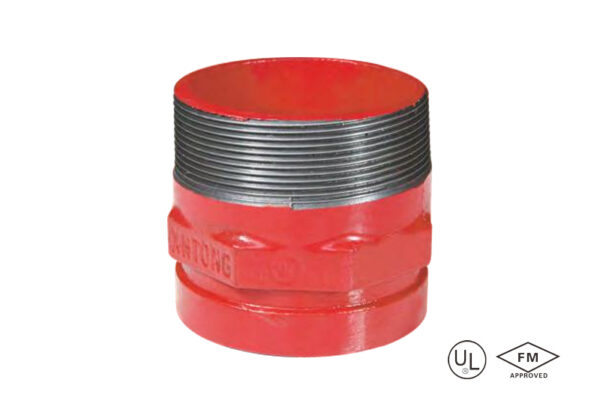

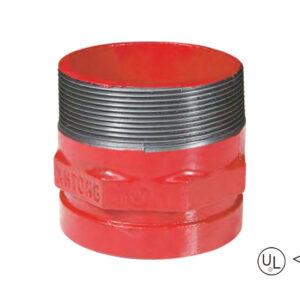

Grooved x male threaded adapter nipple
·Standard: ANSI / UL 213C UL / FM
·Material: Ductile iron ASTM A536, 65-45-12
·Thread run: Male thread, NPT / BSPT
·Rated pressure: 300 – 500 psi
·Surface: Red painting / hot dip galvanized
·Size range: 1-1/2″ – 2″
description
Grooved x male threaded adapter nipple is a short threaded adapter with a grooved connection structure at one end and an external thread at the other end, used for the transitional connection between the grooved connection and the external thread connection
Specification
Available size

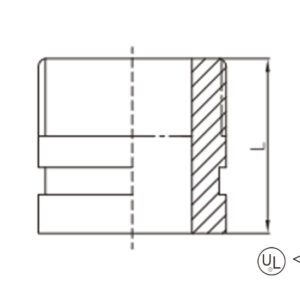

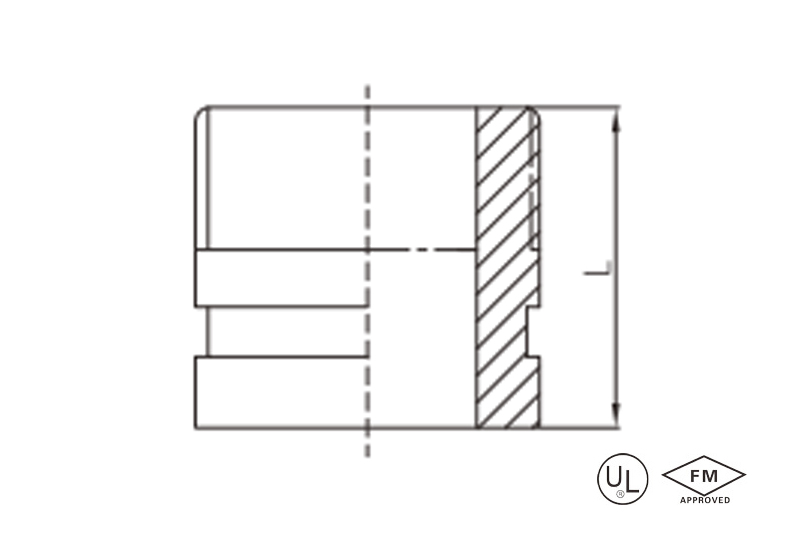

| Size | End to end | ||
| Inch | DN | mm | L(mm) |
| 1-1/2″ | 40 | 48.3 | 63 |
| 2″ | 50 | 60.3 | 63 |
application
- Quick connection of grooved main pipes to internal thread fire hydrants/valves in fire protection systems;
- connection of HVAC pipes to internal thread radiators or pump bodies;
- replacement of damaged external thread connections during industrial equipment maintenance;
- situations where grooved pipes need to be connected to internal thread containers (such as water tanks).
advantages
1. Fast interface conversion: Direct connection (single-piece integrated groove-end clamp/connection, external thread ends in accordance with NPT standards, BSPT threads) directly to internally threaded equipment, without the need for an adapter.
2. Quick installed convenient and time-saving: groove-end clamps can be locked in seconds, threaded ends can be manually tightened, 60% installation labor saving.
3. Strong and durable：Dedicated ductile iron design, strong anti-pressure strength and no cracking.Ductile Iron body with hot-dip galvanized or red paint coated to prevent rusting last more than 15 years in service.
4. High pressure safety test: Internationally standard UL/FM testing and passed, no leakage at 300-500 psi.
5. Compatible worldwide: Supports NPT and BSPT thread specifications — fits on the equipment interfaces of America, Europe and Asia
packing
- Individual items are protected with a rust-proof oil coating wrapped in bubble wrap to prevent scratches during transportation and rusting due to moisture.
- Standard packaging consists of high-strength corrugated cardboard boxes with EPE foam inserts to secure the product. The box includes a product label (with dimensions and thread type), a certificate of conformity, and a warranty card.
- The outer box is clearly printed with: product name, specifications (e.g., 1-1/2“ NPT), quantity, gross weight/net weight, UL/FM certification marks, and marked with ”↑Upward“ and ”Moisture-proof” icons.
- All packaging meets the ISTA 3E export transportation testing standards.
Available size
| Size | End to end | ||
| Inch | DN | mm | L(mm) |
| 2″ | 50 | 60.3 | 64 |
| 2-1/2″ | 65 | 73.0 | 70 |
| 3″ | 80 | 88.9 | 70 |
| 4″ | 100 | 114.3 | 83 |
- Quick connection of grooved main pipes to internal thread fire hydrants/valves in fire protection systems;
- connection of HVAC pipes to internal thread radiators or pump bodies;
- replacement of damaged external thread connections during industrial equipment maintenance;
- situations where grooved pipes need to be connected to internal thread containers (such as water tanks).
1. Fast interface conversion: Direct connection (single-piece integrated groove-end clamp/connection, external thread ends in accordance with NPT standards, BSPT threads) directly to internally threaded equipment, without the need for an adapter.
2. Quick installed convenient and time-saving: groove-end clamps can be locked in seconds, threaded ends can be manually tightened, 60% installation labor saving.
3. Strong and durable：Dedicated ductile iron design, strong anti-pressure strength and no cracking.Ductile Iron body with hot-dip galvanized or red paint coated to prevent rusting last more than 15 years in service.
4. High pressure safety test: Internationally standard UL/FM testing and passed, no leakage at 300-500 psi.
5. Compatible worldwide: Supports NPT and BSPT thread specifications — fits on the equipment interfaces of America, Europe and Asia
- Individual items are protected with a rust-proof oil coating wrapped in bubble wrap to prevent scratches during transportation and rusting due to moisture.
- Standard packaging consists of high-strength corrugated cardboard boxes with EPE foam inserts to secure the product. The box includes a product label (with dimensions and thread type), a certificate of conformity, and a warranty card.
- The outer box is clearly printed with: product name, specifications (e.g., 1-1/2“ NPT), quantity, gross weight/net weight, UL/FM certification marks, and marked with ”↑Upward“ and ”Moisture-proof” icons.
- All packaging meets the ISTA 3E export transportation testing standards.
