Grooved 90° reducing elbow
·Standard: ANSI / UL 213C UL / FM
·Material: Ductile iron ASTM A536, 65-45-12
·Rated pressure: 300 – 500 psi

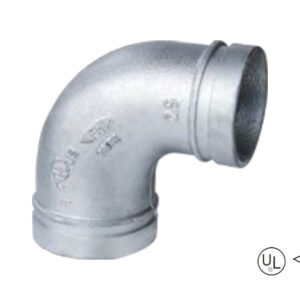

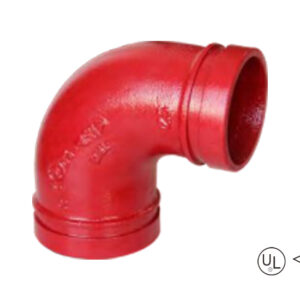

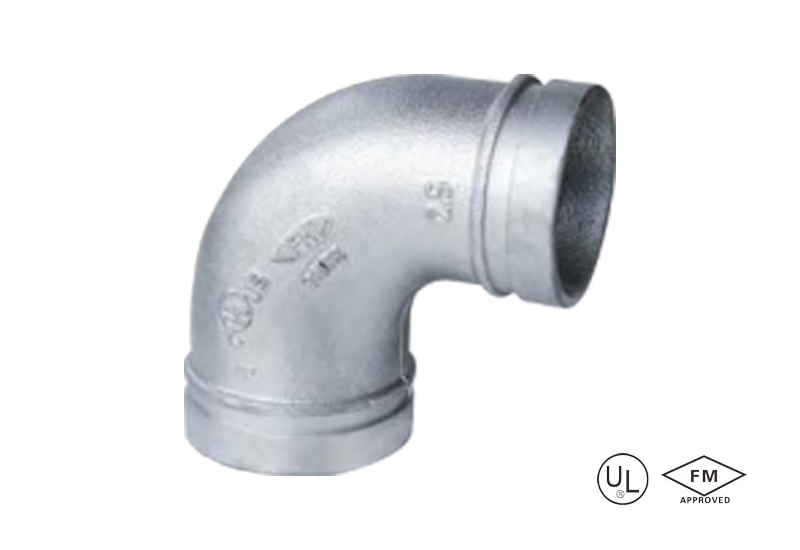

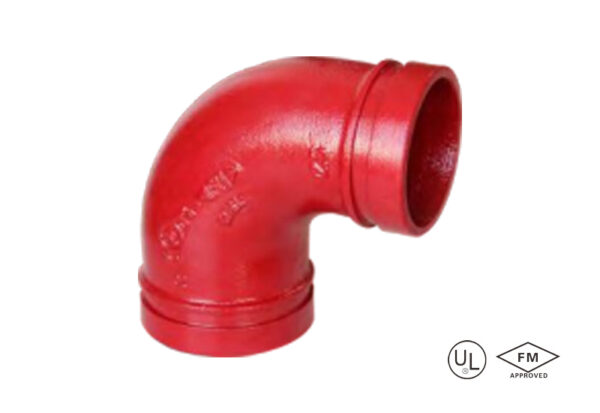

·Surface: Red painting / hot dip galvanized
·Size range: 3″×2-1/2″ – 6″×4″
description
Grooved 90° reducing elbow is a 90-degree reducing elbow with a grooved connection structure. The pipe diameters at both ends are different, which can not only change direction but also achieve pipe diameter reduction
Specification
Available size

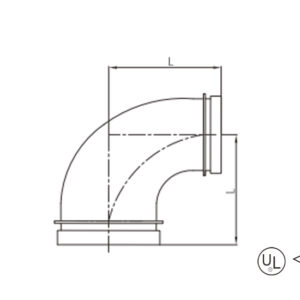

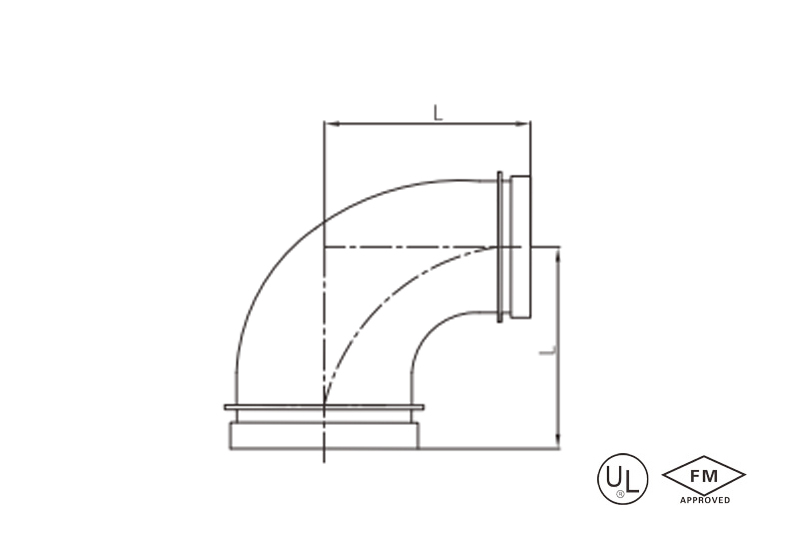

| Size | Center to end,L(mm) | ||
| Inch | DN | mm | |
| 3″× 2-1/2″ | 80 × 65 | 88.9 × 76.1 | 108 |
| 4″× 2-1/2″ | 100 × 65 | 114.3 × 76.1 | 127 |
| 4″× 3″ | 100 × 80 | 114.3 × 88.9 | 127 |
| 6″× 4″ | 150 × 100 | 165.1 × 114.3 | 165 |
| 6″× 4″ | 150 × 100 | 168.3 × 114.3 | 165 |
application
- Suitable for fire sprinkler systems, HVAC, and industrial piping projects
- Used in pipe systems where it is necessary to change the flow direction and adjust the pipe diameter at the same time (such as pump room connections and space-restricted areas)
- Commonly used in commercial buildings, factories, underground pipe galleries, and other medium- and high-pressure fluid transportation scenarios
advantages
- Fast installation: Socket connection, no need to weld, do not use complicated tools to connect, for no more than half an hour can be a good soldering.
- Suitable for flexible adaptability: the diameter structure is variables, can flexible connect pipes of various sizes, and make use of reasonable machine plane.
- High power: It can produce linear tensile strength of 1600KN and bending strength of 53.3kN.min Strong,durable, ductile iron material ability to resist broken high surface is coated with anti-corrosion coatings (red paint/hot-dip galvanizing) to extend the service life
- Technical advantages: UL/FM international certification, safe and reliable, suitable for critical systems, such as fire-fighting applications
packing
- Each item is packaged with shock-absorbing foam and corrugated cardboard boxes to prevent damage during transportation.
- Large-size elbows (such as 6“ × 4”) are reinforced with custom wooden pallets to ensure stable stacking.
- The outer box is labeled with the product model, dimensions, and flow direction (such as a “→” arrow) for easy identification on site.
