Butt weld straight cross (Equal cross)
·Standard: ISO
ASME B16.9
·Material: Carbon steel ASTM A234, WPB
SS ASTM A403, WP304 / WP316L
·W. pressure: Equal to same seamless pipe
·Surface: Black painting / hot dip galvanized Pickling white, etc.
·Size range: 1″-24″
description

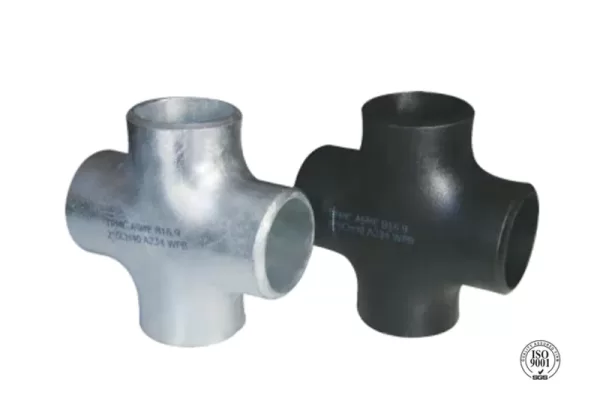

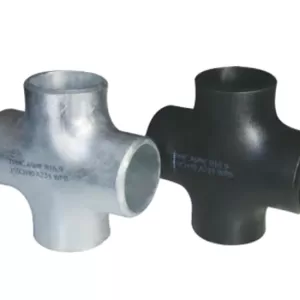

butt weld straight cross (equal cross), using butt weld connection. The branch outlet is the same size as the main outlet and is used to create two branch pipes in the direction of 90 degrees. It has high strength and pressure resistance and excellent sealing.

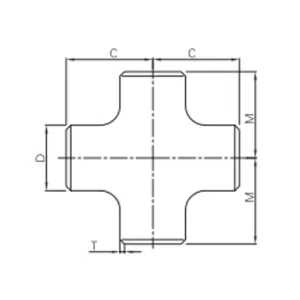

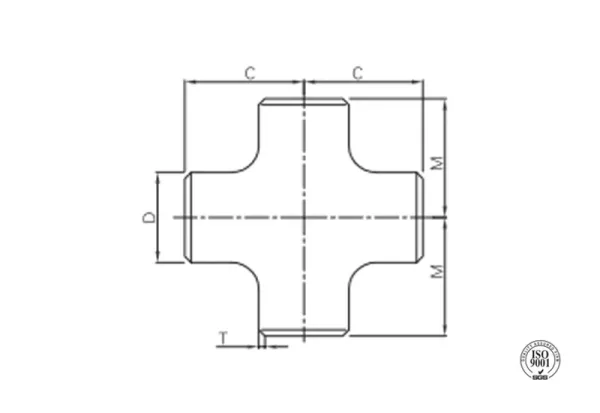

Specification
Available size
| Size | Thickness (mm) |
C(mm) |
M(mm) | ||||
| NPS | DN | OD(mm) | Sch10 | Sch40 | Sch80 | ||
| 1/2″ | 15 | 21.3 | 2.11 | 2.77 | 3.73 | 25 | 25 |
| 3/4″ | 20 | 26.7 | 2.11 | 2.87 | 3.91 | 29 | 29 |
| 1″ | 25 | 33.4 | 2.77 | 3.38 | 4.55 | 38 | 38 |
| 1-1/4″ | 32 | 42.2 | 2.77 | 3.56 | 4.85 | 48 | 48 |
| 1-1/2″ | 40 | 48.3 | 2.77 | 3.68 | 5.08 | 57 | 57 |
| 2″ | 50 | 60.3 | 2.77 | 3.91 | 5.54 | 64 | 64 |
| 2-1/2″ | 65 | 73.0 | 3.05 | 5.16 | 7.01 | 76 | 76 |
| 3″ | 80 | 88.9 | 3.05 | 5.49 | 7.62 | 86 | 86 |
| 4″ | 100 | 114.3 | 3.05 | 6.02 | 8.56 | 105 | 105 |
| 5″ | 125 | 141.3 | 3.40 | 6.55 | 9.53 | 124 | 124 |
| 6″ | 150 | 168.3 | 3.40 | 7.11 | 10.97 | 143 | 143 |
| 8″ | 200 | 219.1 | 3.76 | 8.18 | 12.70 | 178 | 178 |
| 10″ | 250 | 273.0 | 4.19 | 9.27 | 15.09 | 216 | 216 |
| 12″ | 300 | 323.8 | 4.57 | 10.31 | 17.48 | 254 | 254 |
| 14″ | 350 | 355.6 | 6.35 | 11.13 | 19.05 | 279 | 279 |
| 16″ | 400 | 406.4 | 6.35 | 12.70 | 21.44 | 305 | 305 |
| 18″ | 450 | 457 | 6.35 | 14.27 | 23.83 | 343 | 343 |
| 20″ | 500 | 508 | 6.35 | 15.09 | 26.19 | 381 | 381 |
| 24″ | 600 | 610 | 6.35 | 17.48 | 30.96 | 432 | 432 |
Note: The thickness is available with Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.
application
- Used in industrial piping systems (such as chemical, energy, marine, water supply, etc.), to create two 90° branches on the main pipe at the same time.
- All ports are of the same size (equal diameter design), suitable for piping layouts that require symmetrical diversion or convergence.
- Key scenarios: Cross-pipe nodes requiring high-strength connections (such as pump station diversion, multi-device parallel systems).
advantages
- Balanced Axial Forces: It is a 4-way same diameter structure, simplifying the pipeline layout and ensuring uniform flow balance of the fluid.
- High Pressure Resistance: The pressure resistance performance of is the same as that of seamless round steel pipes of the same specification, so it is safe and reliable.
- Zero leak sealing: Permanent seal for welded joints, suited among high-pressure/corrosive media.
- Service Conditions: Compatible with carbon steel (ASTM A234 WPB) and stainless steels (304/316L); suitable for a range of environments.
- ISO and ASME B16.withErrors Standardized manufacturing 9 international standards, for global Interoperability
- Full size coverage : From 1” to 24”, covers full size (All) of the pipeline with max suitable ranges, meets all requirements .
packing
- Surface protection: blacking paint coating, hot-dip galvanization, etc. suitable for rust prevention during transportation only;
- Bundling & reinforcement: small size items are bundled and reinfoced with the 4 way steel strip; big size items protected by wooden case individual.
- Moisture-proof treatment: The packaging is equipped with a moisture-proof film or oil paper to prevent moisture.
- Marking : Clearly the outer box is marked with specs, material, standards and batch no for easy identification & acceptance .
Available size
| Size | Thickness (mm) |
C(mm) |
M(mm) | ||||
| NPS | DN | OD(mm) | Sch10 | Sch40 | Sch80 | ||
| 1/2″ | 15 | 21.3 | 2.11 | 2.77 | 3.73 | 25 | 25 |
| 3/4″ | 20 | 26.7 | 2.11 | 2.87 | 3.91 | 29 | 29 |
| 1″ | 25 | 33.4 | 2.77 | 3.38 | 4.55 | 38 | 38 |
| 1-1/4″ | 32 | 42.2 | 2.77 | 3.56 | 4.85 | 48 | 48 |
| 1-1/2″ | 40 | 48.3 | 2.77 | 3.68 | 5.08 | 57 | 57 |
| 2″ | 50 | 60.3 | 2.77 | 3.91 | 5.54 | 64 | 64 |
| 2-1/2″ | 65 | 73.0 | 3.05 | 5.16 | 7.01 | 76 | 76 |
| 3″ | 80 | 88.9 | 3.05 | 5.49 | 7.62 | 86 | 86 |
| 4″ | 100 | 114.3 | 3.05 | 6.02 | 8.56 | 105 | 105 |
| 5″ | 125 | 141.3 | 3.40 | 6.55 | 9.53 | 124 | 124 |
| 6″ | 150 | 168.3 | 3.40 | 7.11 | 10.97 | 143 | 143 |
| 8″ | 200 | 219.1 | 3.76 | 8.18 | 12.70 | 178 | 178 |
| 10″ | 250 | 273.0 | 4.19 | 9.27 | 15.09 | 216 | 216 |
| 12″ | 300 | 323.8 | 4.57 | 10.31 | 17.48 | 254 | 254 |
| 14″ | 350 | 355.6 | 6.35 | 11.13 | 19.05 | 279 | 279 |
| 16″ | 400 | 406.4 | 6.35 | 12.70 | 21.44 | 305 | 305 |
| 18″ | 450 | 457 | 6.35 | 14.27 | 23.83 | 343 | 343 |
| 20″ | 500 | 508 | 6.35 | 15.09 | 26.19 | 381 | 381 |
| 24″ | 600 | 610 | 6.35 | 17.48 | 30.96 | 432 | 432 |
Note: The thickness is available with Sch5, Sch10, Sch30, Sch40, Sch80, Sch120, Sch160, STD, XS, XXS, 5S, 10S, 40S, 80S, etc.
- Used in industrial piping systems (such as chemical, energy, marine, water supply, etc.), to create two 90° branches on the main pipe at the same time.
- All ports are of the same size (equal diameter design), suitable for piping layouts that require symmetrical diversion or convergence.
- Key scenarios: Cross-pipe nodes requiring high-strength connections (such as pump station diversion, multi-device parallel systems).
- Balanced Axial Forces: It is a 4-way same diameter structure, simplifying the pipeline layout and ensuring uniform flow balance of the fluid.
- High Pressure Resistance: The pressure resistance performance of is the same as that of seamless round steel pipes of the same specification, so it is safe and reliable.
- Zero leak sealing: Permanent seal for welded joints, suited among high-pressure/corrosive media.
- Service Conditions: Compatible with carbon steel (ASTM A234 WPB) and stainless steels (304/316L); suitable for a range of environments.
- ISO and ASME B16.withErrors Standardized manufacturing 9 international standards, for global Interoperability
- Full size coverage : From 1” to 24”, covers full size (All) of the pipeline with max suitable ranges, meets all requirements .
- Surface protection: blacking paint coating, hot-dip galvanization, etc. suitable for rust prevention during transportation only;
- Bundling & reinforcement: small size items are bundled and reinfoced with the 4 way steel strip; big size items protected by wooden case individual.
- Moisture-proof treatment: The packaging is equipped with a moisture-proof film or oil paper to prevent moisture.
- Marking : Clearly the outer box is marked with specs, material, standards and batch no for easy identification & acceptance .
